Configuration of IGEL Windows 365 on IGEL OS

Configuring Logon

1. In the Profile Configurator, go to Apps > Windows 365 Cloud PC > Windows 365 Cloud PC Sessions > [Session Name] > Logon.







2. Edit the settings according to your needs. The parameters are described in the following.


Username@domain or @domain

A user name or a preset domain name used for the automatic connection to the Windows 365 session. The string after "@" is taken as a preset domain name.

Example:

windows@your.domain.com: To log in, the user does not need to enter the username and the domain name.

@your.domain.com: To log in, the user only needs to enter the username. The preset domain – your.domain.com – will automatically be appended.

Overwriting the Preset Domain Name

Use the following registry key to specify whether the user should be able to overwrite the preset domain, e.g. with username@other-domain.com:

Password

The password used for the automatic connection to the Windows 365 session.

If the Login Credentials Should Not Be Applied Automatically for the Session Host Authentication

You can use the following registry key to always prompt for a user name and password or only for a password when connecting to an Windows 365 session:

Workspace resource automatically start when connected

Name of the resource that is to be started automatically when the Windows 365 session is launched. The name specified here must exactly match the name of the Windows 365 resource that has been assigned to the user.

Only one resource can be started automatically; the automatic start of multiple resources is not supported.

Enable Single Sign-On

• Single sign-on (SSO) is activated. (Default)

 After the Azure Active Directory authentication the user needs to authenticate to the session host as well, which is done automatically from what was used for the Azure Active Directory authentication.

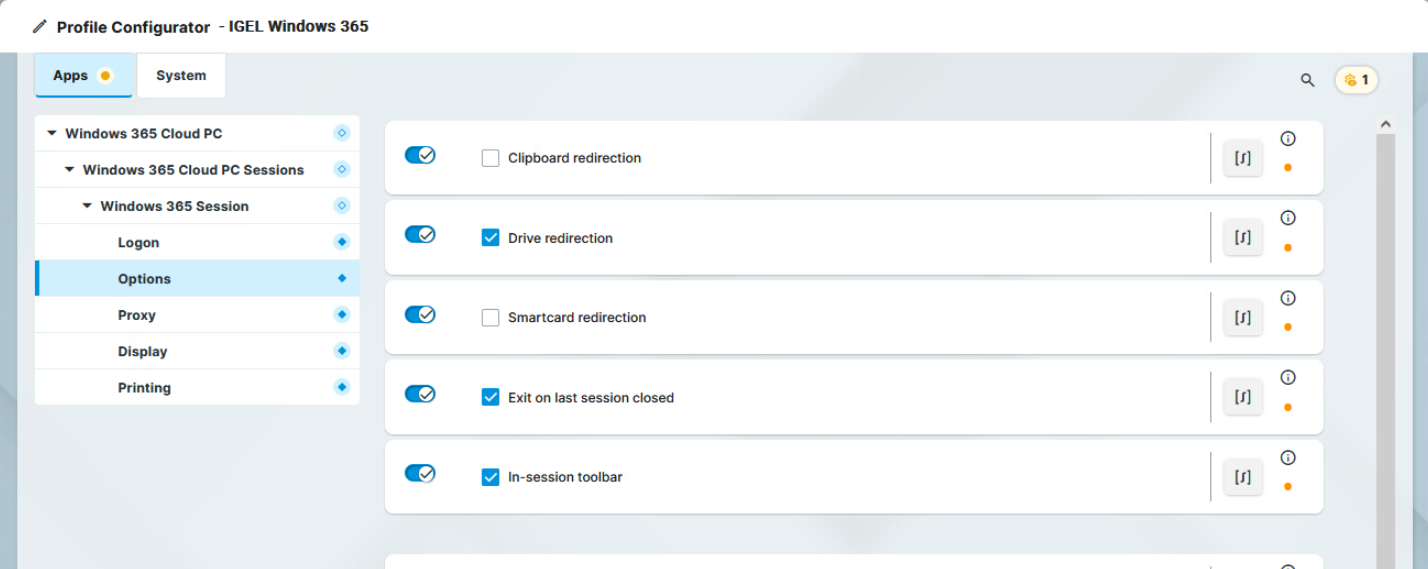

Configuring the Options

1. In the Profile Configurator, go to Apps > Windows 365 Cloud PC > Windows 365 Cloud PC Sessions > [Session Name] > Options.



2. Edit the settings according to your needs. The parameters are described in the following.


Clipboard redirection

• Text and images from the clipboard are shared between the Windows 365 session and the local client.
• Text and images from the clipboard are not shared between the Windows 365 session and the local client. (Default)

Drive redirection

•  Redirection is bound to the /media folder, so that locally mounted storage devices, including USB sticks, are forwarded to the Windows 365 session. (Default)

Smartcard redirection

• Smartcards are forwarded to the Windows 365 session.
• Smartcards are not forwarded to the Windows 365 session. (Default)

Exit on last session closed

• When the last session window is closed, the entire IGEL Windows 365 client automatically closes. (Default)

In-session toolbar

•  The in-session toolbar is enabled. (Default)

Audio output redirection

•  The audio output is redirected between the Windows 365 session and the local client. (Default)

Audio input redirection

• The audio input (microphone) is redirected between the local client and the Windows 365 session. (Default)

AAC Codec

• The AAC (Advanced Audio Coding) codec used for support of audio output redirection is enabled. (Default)

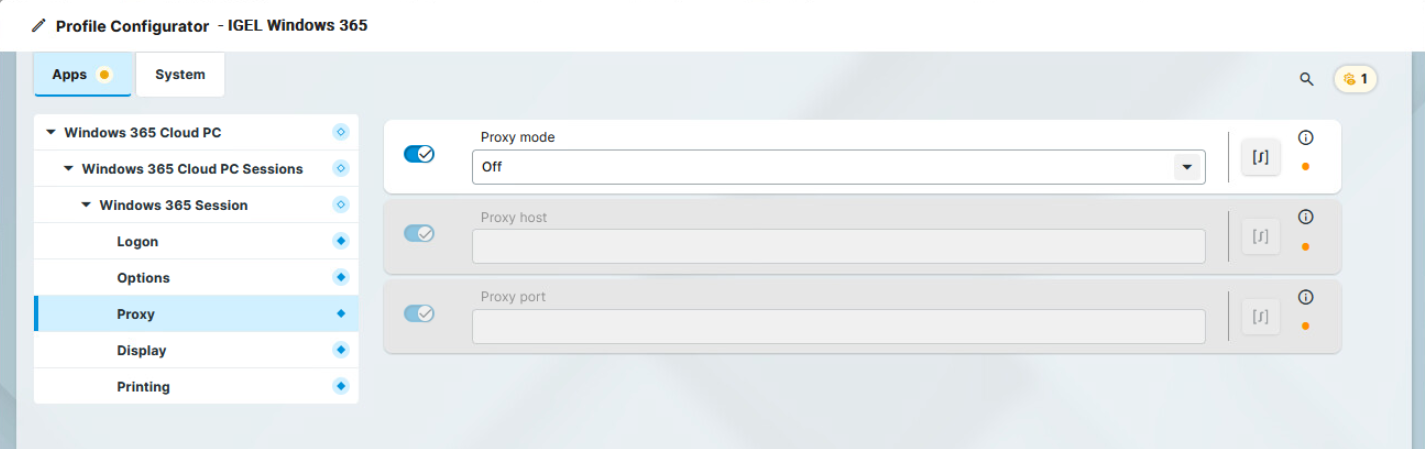

Configuring the Proxy

1. In the Profile Configurator, go to Apps > Windows 365 Cloud PC > Windows 365 Cloud PC Sessions > [Session Name] > Proxy.



2. Edit the settings according to your needs. The parameters are described in the following.

Proxy mode

Specifies if a proxy should be used.
Possible options:

• Off: A proxy is disabled. The direct connection to the Internet is used. (Default)

• Global proxy setting: The proxy configured under Network > Proxy is used, see IGEL OS Base System > IGEL OS Base System > Configuration of IGEL OS 12 Device Settings > Network Configuration in IGEL OS12 > Proxy Configuration in IGEL OS12

• Session specific proxy: The proxy configuration specified under Proxy host and Proxy port is used.

Proxy host

The hostname or IP address of the proxy server. Configurable if Session specific proxy is selected.

Proxy port

Port on which the proxy service is available. Configurable if Session specific proxy is selected.

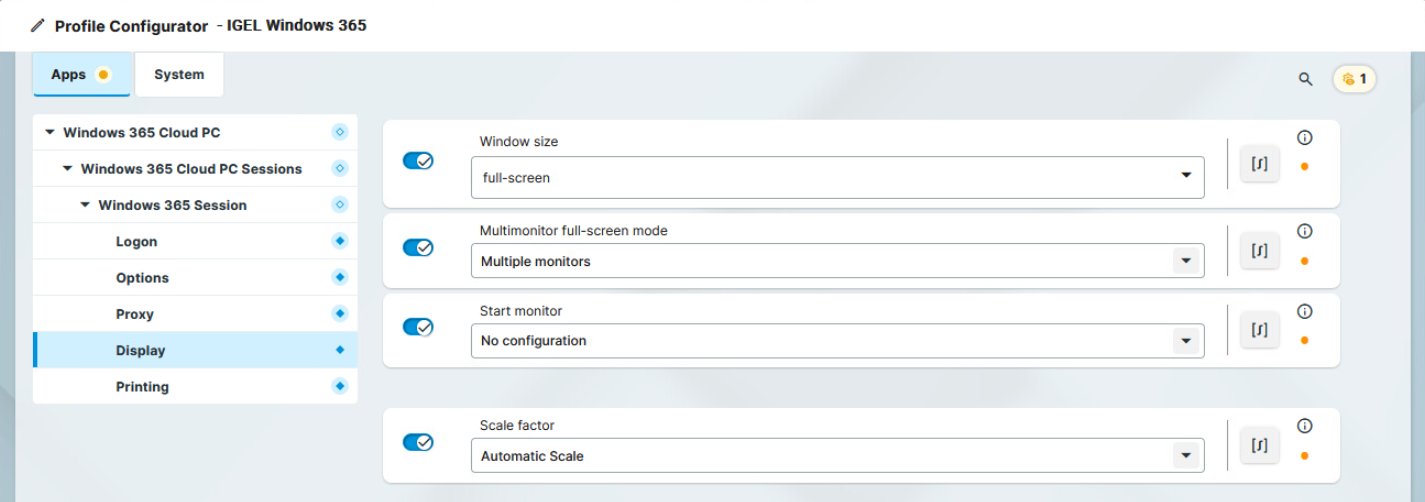

Configuring the Display

1. In the Profile Configurator, go to Apps > Windows 365 Cloud PC > Windows 365 Cloud PC Sessions > [Session Name] > Display.



2. Edit the settings according to your needs. The parameters are described in the following.

Window size

Specifies the width and height of the window.
Possible options:

• Full-screen: The session is shown on the full screen. The device's taskbar is not visible. (Default)

• Work area: The session is shown on the full screen, minus the area needed by the device's taskbar.

• Numeric details: The session is shown in the selected resolution or on the selected percentage of the screen area.

Multimonitor full-screen mode

This setting is relevant if more than one monitor is connected to the terminal.
Possible options:

• Single monitor: Restricts the full-screen session to one monitor.

• Multiple monitors: Displays the full-screen session on multiple monitors. (Default)

• Expand to all monitors: Expands the full-screen session across all monitors.

Start monitor

Specifies the monitor on which the session is displayed.
Possible options:

• No configuration: The monitor is selected according to the current position of the mouse pointer. (Default)

• 1st-8th monitor


Scale factor

Specifies the desktop scaling in percent.
Possible values:

• Automatic scale: The resolution set under User Interface > Display Settings > DPI Options > Monitor-DPI is used for the session. For details, see IGEL OS Base System > IGEL OS Base System > Configuration of IGEL OS 12 Device Settings > User Interface > Display Settings > DPI Options

• Numeric details: The display is magnified by the factor given here.

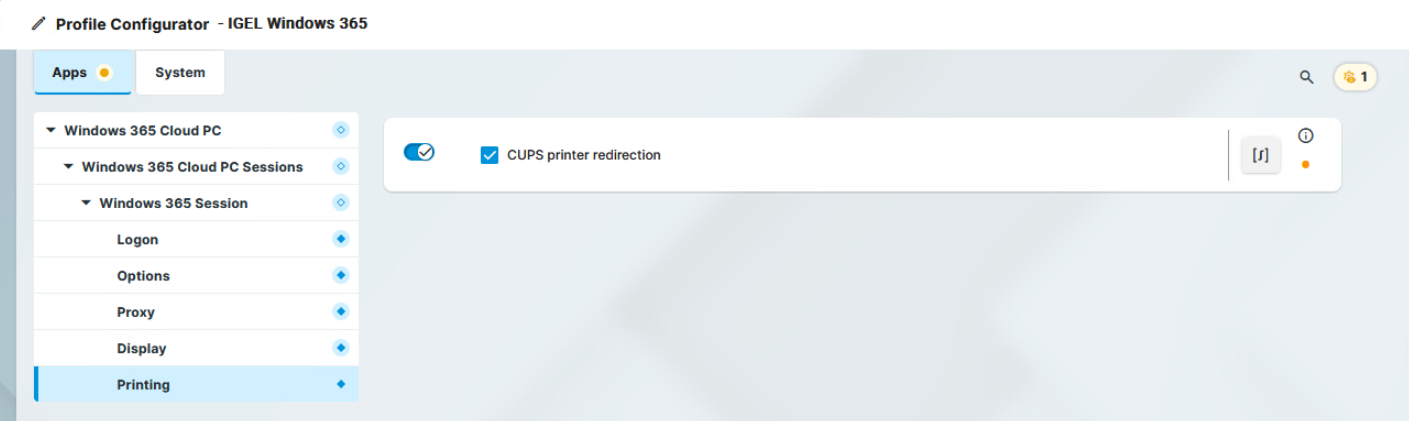

Configuring Printing

1. In the Profile Configurator, go to Apps > Windows 365 Cloud PC > Windows 365 Cloud PC Sessions > [Session Name] > Printing.



2. Edit the settings according to your needs. The parameters are described in the following.

CUPS printer redirection

• CUPS printers are redirected to the Windows 365 session. (Default)
