When to Use IGEL Cloud Gateway
The IGEL Cloud Gateway (ICG) is required if the UMS and the devices are not in the same network. The following scenarios are typical use cases for the ICG:
The endpoint devices (IGEL UD, UD Pocket or devices converted by UDC3/OSC) of all geographically dispersed branches of a company are to be managed by one central IGEL Universal Management Suite (UMS).
UD Pocket or devices converted by UDC3/OSC are to be managed by the UMS which is residing on premises.
For detailed information on UMS installation scenarios, see the Universal Management Suite > UMS Reference Manual > UMS Installation and Update > IGEL UMS Installation > Installation and Sizing Guidelines for IGEL UMS.
Network Topologies
The possible network topologies are listed below. See also Universal Management Suite > UMS Reference Manual > UMS Installation and Update > IGEL UMS Installation > Installation and Sizing Guidelines for IGEL UMS > IGEL Cloud Gateway vs. Reverse Proxy for the Communication between UMS 12 and IGEL OS Devices.

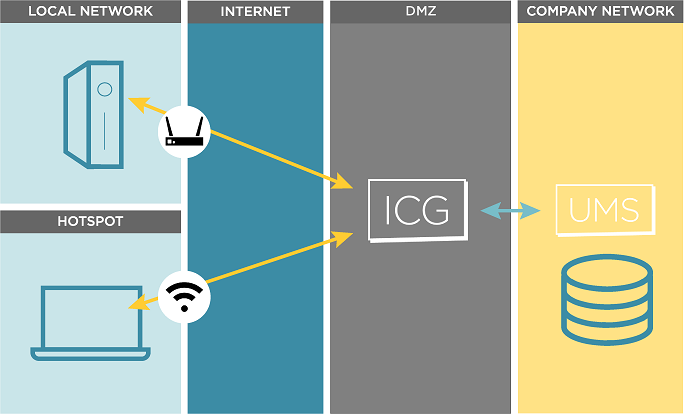

ICG in the Demilitarized Zone (DMZ) of the Company Network
![](../../../__attachments/128222210/image2019-2-25_11-42-8.png?inst-v=1988f46b-383c-421a-87c5-1a663c4b07b1)

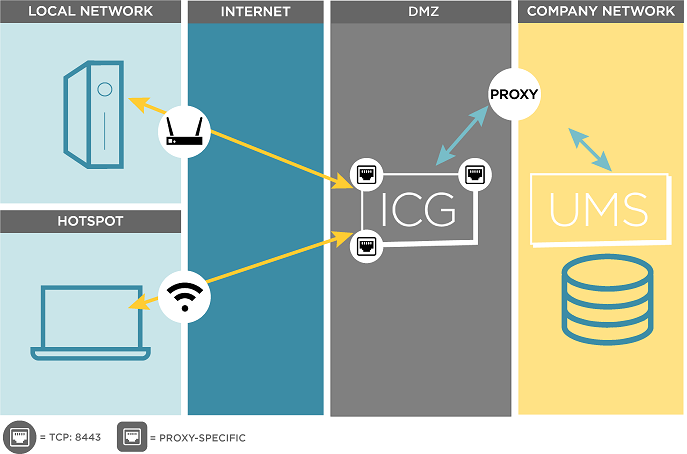

ICG in the Demilitarized Zone (DMZ) of the Company Network and Proxy
This scenario is supported as of UMS version 5.08.
![](../../../__attachments/128222210/image2019-2-25_11-51-16.png?inst-v=1988f46b-383c-421a-87c5-1a663c4b07b1)

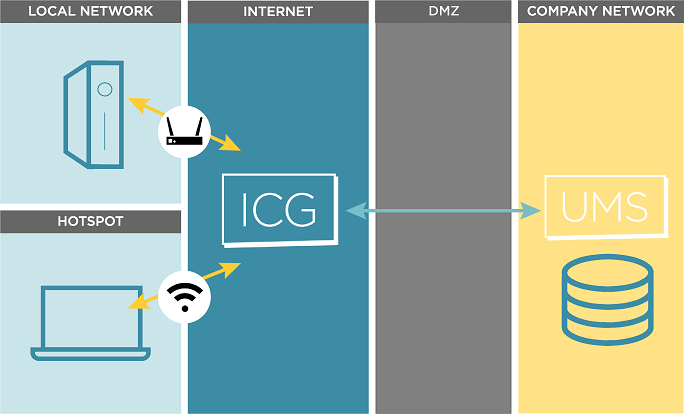

ICG on the Internet (e.g. at a Cloud-Hosting Provider)
![](../../../__attachments/128222210/image2019-2-25_11-42-19.png?inst-v=1988f46b-383c-421a-87c5-1a663c4b07b1)

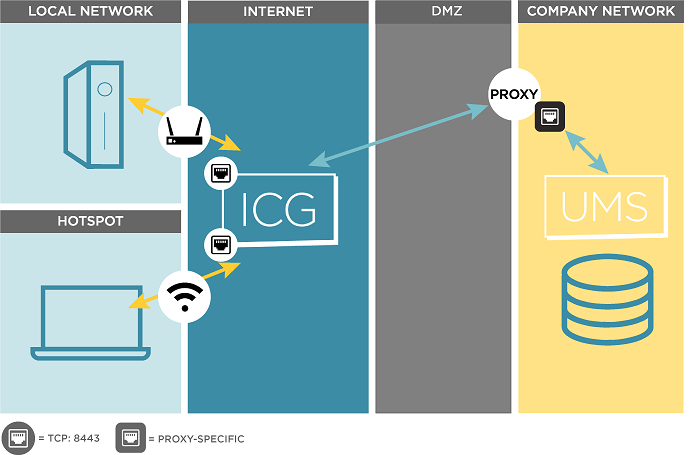

ICG on the Internet with Proxy (e.g. at a Cloud-Hosting Provider)
This scenario is supported as of UMS version 5.08.
![](../../../__attachments/128222210/image2019-2-25_17-16-47.png?inst-v=1988f46b-383c-421a-87c5-1a663c4b07b1)
