Generating and Distributing First-Authentication Keys for Devices

To establish a connection with the ICG, every device must authenticate with the ICG. For this purpose, a first-authentication key must be generated. On first contact with the ICG, the device must present this key.

There are various methods of generating first-authentication keys. The most common one is described here; for alternative methods, see How to Generate First-Authentication Keys for Devices in the ICG.

Creating a New Mass-Deployment Key for Arbitrary Devices

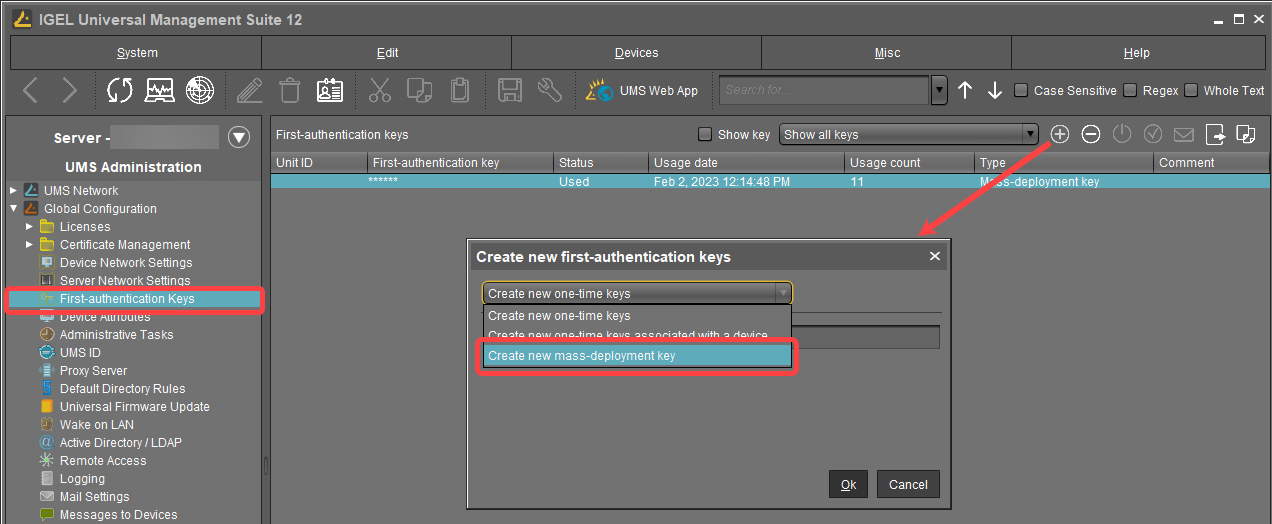

1. In the UMS Console, go to UMS Administration > Global Configuration > First-authentication Keys.


2. Click .



3. Select Create new mass-deployment key.


4. Activate or deactivate Generate random mass-deployment key to choose the method of key generation:

   The key is generated by the UMS.

   You can enter a key of your own in the entry field.


5. Click OK.
   One or more new entries appear in the list.

Distributing the Key via E-Mail or Printed Letter

1. Go to UMS Administration > Global Configuration > First-authentication Keys.


2. Select the desired password entries and click to copy the credentials to the clipboard.
   The data required for connecting a device to the ICG is in the clipboard: host address, ICG server certificate fingerprint, and the password.
   The contents of the clipboard will look similar to the following example:
   --------------------------------------------------------------
--------------------------------------------------------------
Host: 222.222.222.222
Port: 8443

   Root Certificate Fingerprint
Part 1: 1231231231231231
Part 2: 2342342342342342
Part 3: 3453453453453453
Part 4: 4564564564564564
--------------------------------------------------------------
--------------------------------------------------------------
First-authentication key: 17171717171717171
--------------------------------------------------------------
   The clipboard contains data for all active ICGs. In the example above, 1 ICG connection is active. If, for instance, 3 ICGs were active, the data for those 3 ICGs would be included.


3. To send the credentials via e-mail, paste the data into an encrypted e-mail. To send the credentials in a printed letter, paste the data in your e-mail program or word processor.
