Company Logos

Menu path: Setup > System > Firmware Customization > Corporate Design > Company Logos

You can show your company logo in the screensaver and in the start menu.

Screensaver

  • Enable image display

    ☑ The image defined below will be shown as the screensaver. (default)

  • File for screen saver logo: Complete path for an image file or a directory that contains a number of image files.

  • If you enter a folder instead of a single image file as the source, all images in the folder will be displayed as a slide show. The image display time for the images can be configured. If you do not specify a file of your own, the IGEL logo will be used.

  • One image per monitor

    ☑ The image will be shown on each individual monitor rather than one image across all monitors. (default)

  • Image duration: Time in seconds until the image changes (default: 10)

  • Image display mode

    • Small-sized hopping: small image that jumps across the screen

    • Medium-sized hopping: larger image that jumps across the screen

    • Full screen center cut out: Image is displayed across whole screen, edges can be cut off.

    • Full screen letterbox: Complete image is shown. A black edge may be visible depending on the format.

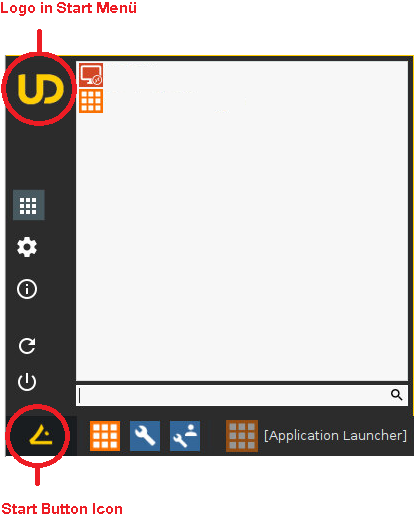

Start menu

  • Start button icon: File name with full path to select your logo as the icon for the start menu in the taskbar. Size: 32x32 pixels

  • Company logo in start menu: File name with full path to show your company logo in the start menu window. Size: 64x64 pixels

    In order to see the company logo in the start menu window, you must set the start menu type to Advanced. To do this, click on User Interface > Desktop > Start Menu.

    Start menu_logos
