Starting the Conversion by Updating the Devices

In this step, we will update the devices, which includes the conversion to IGEL OS 11.

The devices will be converted to IGEL OS 11 automatically when the update is executed. The devices cannot be converted back to IGEL Windows 10 IoT.

Transferring the Snapshot File to the UMS

The snapshot file must be placed in the file system of the UMS Server.

1. Get access to the file system of the machine on which your UMS Server is running.

2. Unzip the snapshot file to <UMS Installation directory>\rmguiserver\webapps\ums_filetransfer

Creating an Update Profile

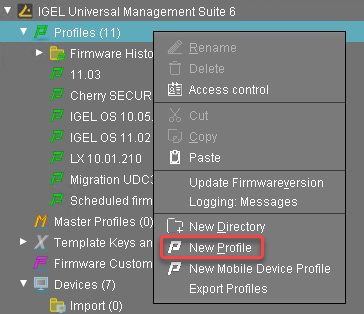

1. In the UMS structure tree, go to Profiles, open the context menu, and select New Profile.



2. Enter the following data:

   • Profile Name: Name for the profile, e. g. "Update for Converting".

   • Description: Optional description for the profile.

   • Based on: Firmware version for the profile; select the current firmware of your devices.


3. Click Ok.

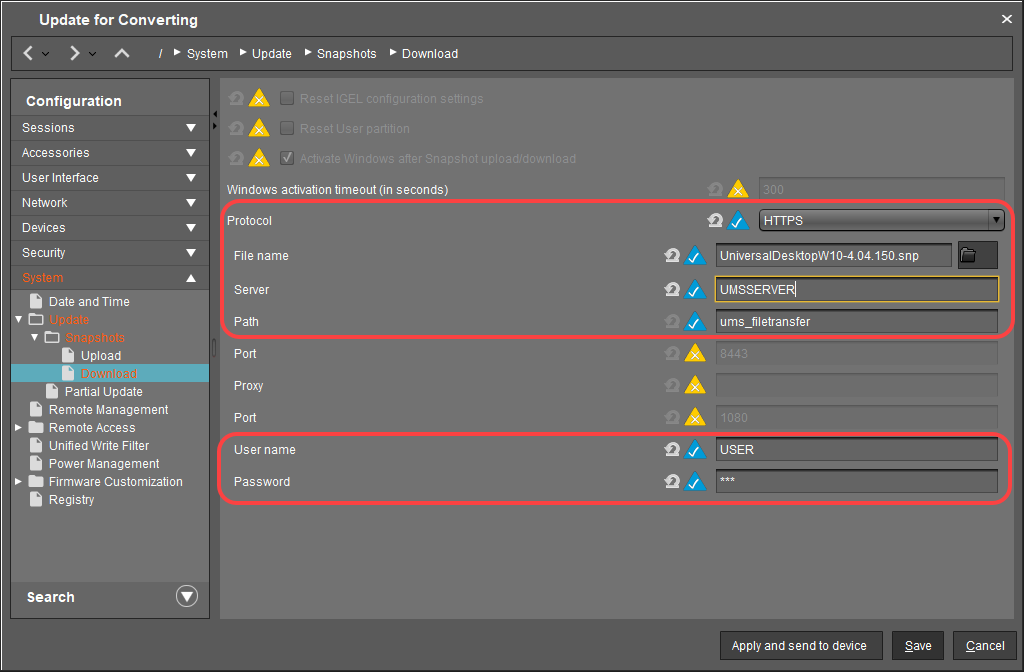

4. Go to System > Update > Snapshots > Download and change the settings as follows:

   • Select "https" as the Protocol.

   • File name: Enter the file name of the snapshot file.

   • Server: Enter the IP address or hostname of the UMS.

   • Path: Enter "ums_filetransfer".

   • Username: Enter the user name under which you have access to the UMS.

   • Password: Enter the password under which you have access to the UMS.



5. Click Save to save the profile.

Starting the Update

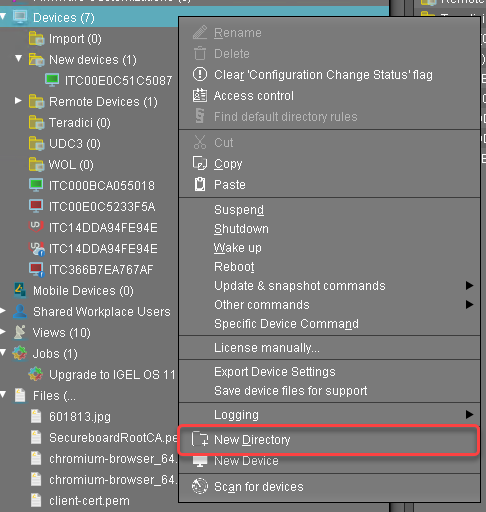

1. Under Devices, create a directory and name it "Convert to IGEL OS 11", for instance.



2. Put the devices that are to be updated into the new directory. You can use drag & drop.

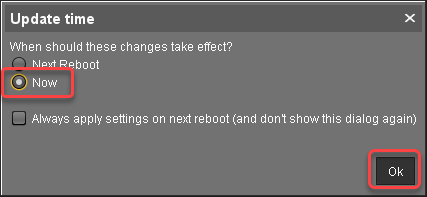

3. In the Update time dialog, select Now and click Ok.
   The directory change is communicated immediately to the device.







4. Select the directory and in the Assigned objects area, click  .

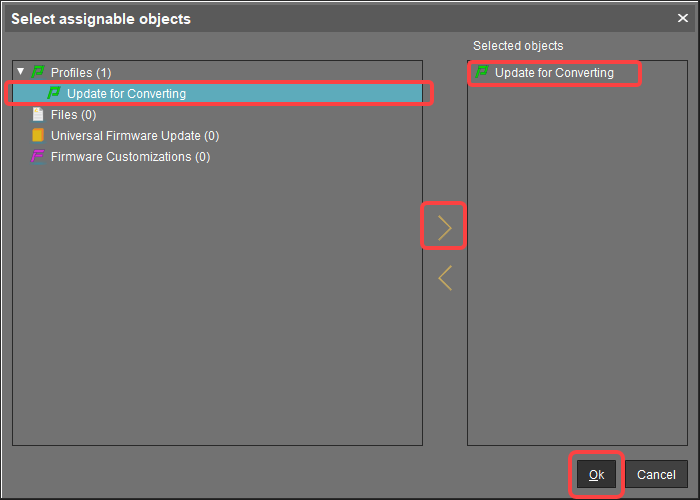

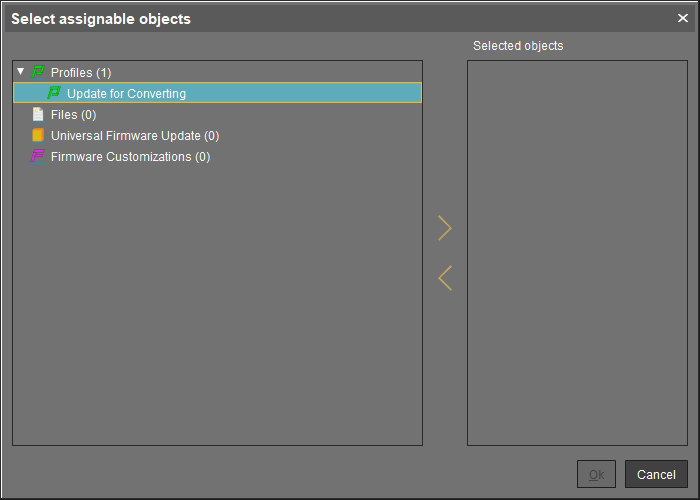

5. Assign the update profile to the directory and click Ok.



6. In the Update time dialog, select Now and click Ok.




   The changes are sent to the devices immediately.

7. Go to the directory that contains the devices that are to be updated and select Update & snapshot commands > Download Firmware Snapshot.
   The update and conversion process is started.

8. When the update process is finished, go to one of the devices and click  to refresh the screen.

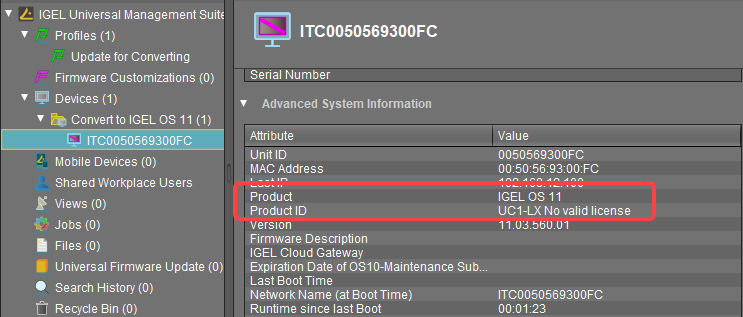

   In the Advanced System Information area, Product is set to "IGEL OS 11", and Product ID is set according to the device.
