Getting the Certificates

Secure mode requires a set of certificates being present both on the endpoint and the keyboard. First, all required certificates are transferred to the endpoint. Then, the endpoint installs a user certificate and the corresponding key on the keyboard; optionally, the client root CA certificate is also installed. This installation of certificates is referred to as personalization.

Downloading the Device Certificates

->Download all certificates from https://github.com/secureboard10/secureboard-ca:

  • Device root CA certificate: SecureboardRootCA.pem

  • Device intermediate CA certificates: p-20190712.pemp-20191030 etc.

Creating the Custom Certificates

According to "CHERRY SECUREBOARD 1.0, Software Developer's Guide", chapter 9.5, all certificate and key pairs that are sent to the keyboard must meet the following requirements:

  • X509 Version 3 using ECDSA over NIST curve prime256v1 with corresponding keys

  • Size: Maximum of 572 bytes resp. 475 bytes in DER format

->Create the following custom certificates:

An example how-to for OpenSSL can be found in "CHERRY SECUREBOARD 1.0, Software Developer's Guide", chapter 9.5; see https://www.cherry.de/files/manual/SECUREBOARD_SwDev_Guide_en-0.4.pdf.

Also, the SECURE BOARD 1.0 Quick Installation Package contains a ready-made shell script that creates example certificates. Download the package from https://www.cherry.de/files/software/Cherry_Secureboard_1.0_Quick_Installation_Package_V1.0.zip, unzip the file, and use Cherry Secureboard 1.0 cert-package V1.0/secureboard_linx/create_certs.sh (Linux) or Cherry Secureboard 1.0 cert-package V1.0/secureboard_windows/create_certs.bat (Windows).

Certificate

Required/Optional

Requirements

Encoding/Extension

Max. File Size*

File Name

Remarks

User root CA certificate

required

not specified

PEM

not specified

not specified

If this certificate is also used as the client root CA certificate for mutual authentication, it must meet the requirements for certificates that are sent to the keyboard: X509 Version 3 using ECDSA over NIST curve prime256v1 with corresponding keys; max. 475 bytes

Intermediate CA certificates

optional (according to the certificate chain that is to be used)

not specified

PEM

not specified

not specified


User certificate (keyboard)

required

X509 Version 3 using ECDSA over NIST curve prime256v1 with corresponding keys

DER (binary)

572 bytes

user-cert.der


Corresponding user key (keyboard)

required

X509 Version 3 using ECDSA over NIST curve prime256v1 with corresponding keys

PEM (without a passphrase)

not specified

user-key.pem


Client root CA certificate (keyboard)

optional; for mutual authentication**

X509 Version 3 using ECDSA over NIST curve prime256v1 with corresponding keys

PEM

475 bytes

not specified

Can be identical with the user root CA certificate

Client certificate (endpoint)

optional; for mutual authentication**

X509 Version 3 using ECDSA over NIST curve prime256v1 with corresponding keys

PEM

475 bytes

client-cert.pem


Client key (endpoint)

optional; for mutual authentication**

X509 Version 3 using ECDSA over NIST curve prime256v1 with corresponding keys

PEM (without a passphrase)

not specified

client-key.pem


* The relevant value is the file size that the certificate has when it is stored in binary format.

** When these certificates are installed, the keyboard can verify if the endpoint is authentic. Without the optional certificates, only the verification of the keyboard's authenticity by the endpoint will be carried out.

Provisioning the Personalization Machine

The following instructions describe how to transfer the required certificates to the personalization machine. The personalization machine will deploy the certificates to the keyboard. The UMS will be used for this purpose.

First, a file object is created for each certificate or key file so that the files can be handled by the UMS.

Second, the file objects are assigned to the personalization machine, which results in the files being transferred to that machine.

Creating the File Object for the Device Root CA Certificate

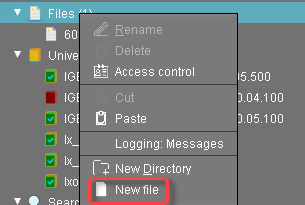

  1. In the UMS structure tree, go to Files and in the context menu, select New file.

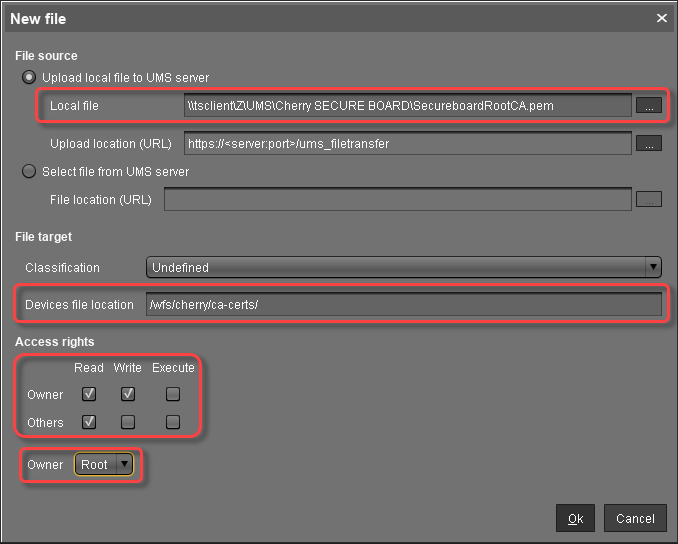

  2. In the New file dialog, configure the settings as follows:

  3. Local file: Local file path of SecureboardRootCA.pem. Use the file chooser by clicking image-20240608-215139.png.

    • Device file location/wfs/cherry/ca-certs/

    • Access rights - Owner: Read, Write

    • Access rights - Others: Read

    • Owner: Root

  4. Click Ok.
    In the UMS, the file object SecureBoardRootCA.pem is created.

Creating the File Object for the Device Intermediate CA Certificate

  1. In the UMS structure tree, go to Files and in the context menu, select New file.

  2. In the New file dialog, configure the settings as follows:

  3. Local file: Local file path of p-20190712.pem. Use the file chooser by clicking image-20240608-215209.png .

    • Device file location/wfs/cherry/ca-certs/

    • Access rights - Owner: Read, Write

    • Access rights - Others: Read

    • Owner: Root


  4. Click Ok.
    In the UMS, the file object p-20190712.pem is created.

Creating the File Object for the Device Client CA Certificate (Optional)

  1. In the UMS structure tree, go to Files and in the context menu, select New file.

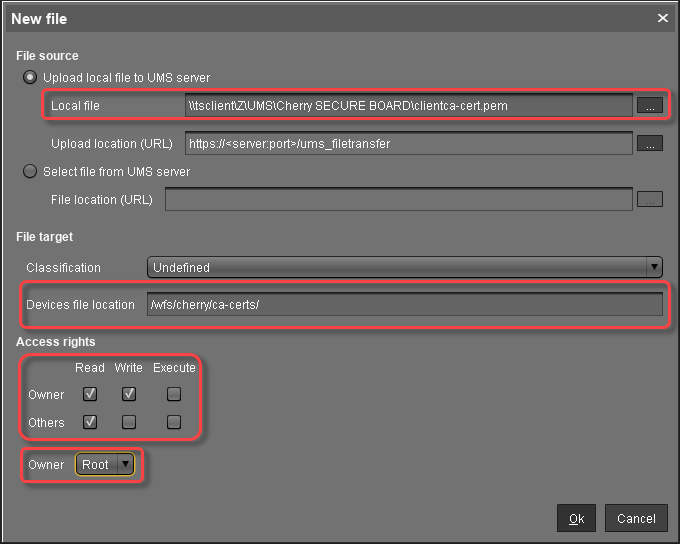

  2. In the New file dialog, configure the settings as follows:

    • Local file: Local file path of clientca-cert.pem. Use the file chooser by clicking image-20240608-215228.png .

    • Device file location/wfs/cherry/ca-certs/

    • Access rights - Owner: Read, Write

    • Access rights - Others: Read

    • Owner: Root


  3. Click Ok.
    In the UMS, the file object clientca-cert.pem is created.

Creating the File Object for the User Certificate (Keyboard)

To transfer the certificate file user-cert.der to the directory /wfs/cherry/client-certs/ on the personalization machine, proceed as follows:

  1. In the UMS structure tree, go to Files and in the context menu, select New file.

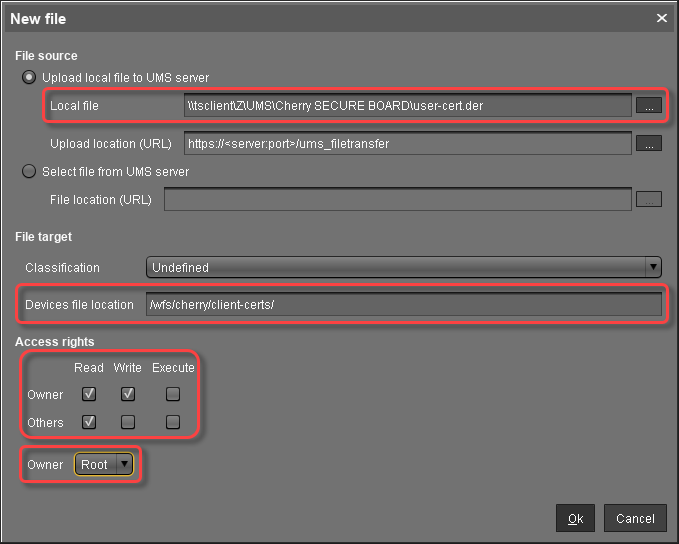

  2. In the New file dialog, configure the settings as follows:

    • Local file: Local file path of user-cert.der. Use the file chooser by clicking image-20240608-215244.png .

    • Device file location/wfs/cherry/client-certs/

    • Access rights - Owner: Read, Write

    • Access rights - Others: Read

    • Owner: Root


  3. Click Ok.
    In the UMS, the file object user-cert.der is created.

Creating the File Object for the User Key (Keyboard)

In the UMS structure tree, go to Files and in the context menu, select New file.

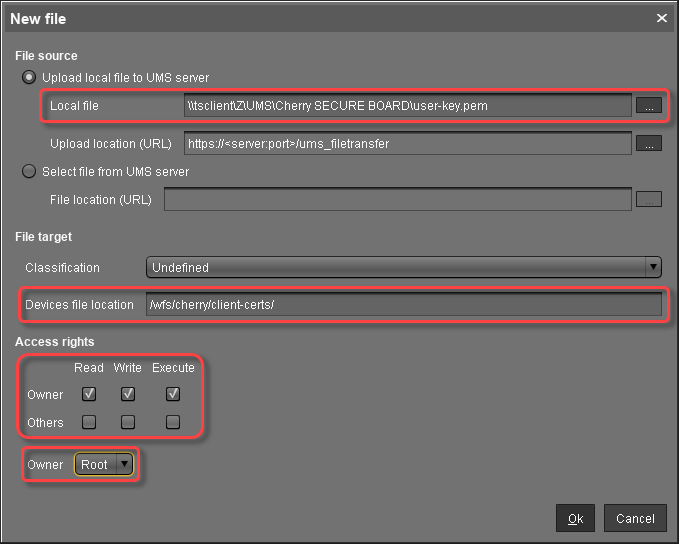

  1. In the New file dialog, configure the settings as follows:

  2. Local file: Local file path of user-key.pem. Use the file chooser by clicking image-20240608-215257.png .

    • Device file location/wfs/cherry/client-certs/

    • Access rights - Owner: Read, Write

    • Access rights - Others: -

    • Owner: Root


  3. Click Ok.
    In the UMS, the file object user-key.pem is created.

Provisioning the Endpoints for Using the SECURE BOARD

The following instructions describe how to transfer the required certificates to the endpoints which will be connected to the SECURE BOARD in secure mode.

Creating the File Object for the User Root CA Certificate

  1. In the UMS structure tree, go to Files and in the context menu, select New file.

  2. In the New file dialog, configure the settings as follows:

    • Local file: Local file path of the certificate file. Use the file chooser by clicking image-20240608-215315.png .

    • Device file location/wfs/cherry/ca-certs/

    • Access rights - Owner: Read, Write

    • Access rights - Others: Read

    • Owner: Root


  3. Click Ok.
    In the UMS, the file object is created. The name of the file object is derived from the file name.

Creating the File Object for the Client Root CA Certificate (Optional)

  1. In the UMS structure tree, go to Files and in the context menu, select New file.

  2. In the New file dialog, configure the settings as follows:

    • Local file: Local file path of the certificate file. Use the file chooser by clicking image-20240608-215334.png .

    • Device file location/wfs/cherry/ca-certs/

    • Access rights - Owner: Read, Write

    • Access rights - Others: Read

    • Owner: Root


  3. Click Ok.
    In the UMS, the file object is created. The name of the file object is derived from the file name.

Creating the File Object for the Client Certificate (Endpoint) (Optional)

  1. In the UMS structure tree, go to Files and in the context menu, select New file.

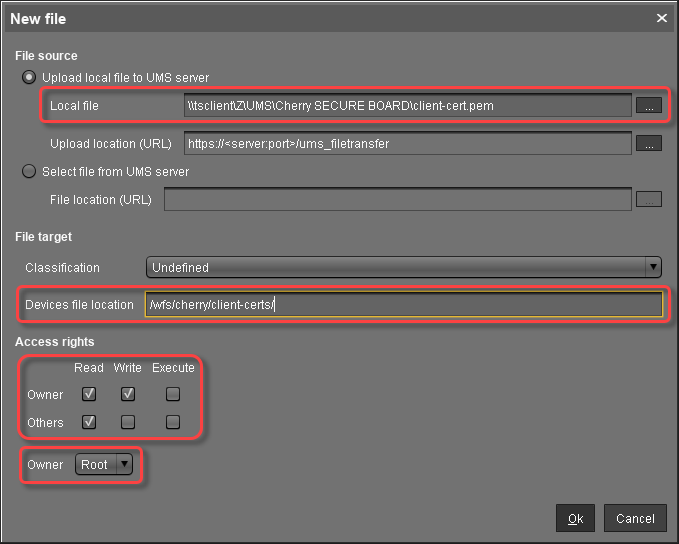

  2. In the New file dialog, configure the settings as follows:

  3. Local file: Local file path of client-cert.pem. Use the file chooser by clicking image-20240608-215352.png .

    • Device file location/wfs/cherry/client-certs/

    • Access rights - Owner: Read, Write

    • Access rights - Others: Read

    • Owner: Root


  4. Click Ok.
    In the UMS, the file object is created. The name of the file object is derived from the file name.

Creating the File Object for the Client Key (Endpoint) (Optional)

  1. In the UMS structure tree, go to Files and in the context menu, select New file.

  2. In the New file dialog, configure the settings as follows:

    • Local file: Local file path of client-key.pem. Use the file chooser by clicking image-20240608-215409.png .

    • Device file location/wfs/cherry/client-certs/

    • Access rights - Owner: Read, Write

    • Access rights - Others: -

    • Owner: Root


  3. Click Ok.
    In the UMS, the file object is created. The name of the file object is derived from the file name.
