Setting Up the Personalization Machine

Setting Up the Local Terminal

If a local terminal session has already been configured on the designated personalization machine, you can skip this step.

  1. Open the device's Setup and go to Accessories >Terminals.

  2. Select image-20240626-155127.png.

  3. Click Ok.
    On the desktop and in the Application Starter, a starter for the terminal session is created.

Assigning the File Objects to the Personalization Machine

  1. In the UMS structure tree, select the endpoint that will act as the personalization machine.

  2. In the Assigned objects area, click

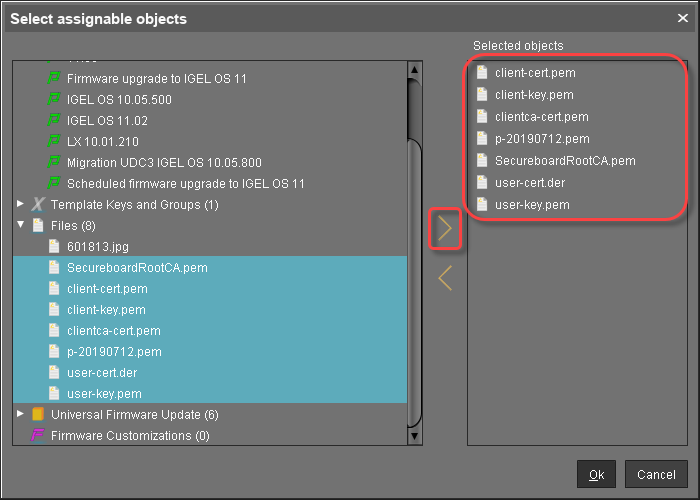

  3. Under Files, select the file objects using the button:

    • SecureboardRootCA.pem

    • Device intermediate CA certificates; here: p-20190712.pem

    • user-cert.der

    • user-key.pem

    • client-cert.pem (optional)

    • client-key.pem (optional)

    • Device client CA certificate; here: clientca-cert.pem (optional)

  4. Click Ok.

  5. In the Update time dialog, select Now and click Ok.
    The certificate and key files are transferred to the personalization machine. The personalization machine is ready for operation.
