Configuring the Distribution Conditions

You can configure the distribution conditions per Product Pack. This allows you, for instance, to distribute licenses from an Enterprise Management Pack (EMP) only to devices that are located in a specific directory of the UMS structure tree.

The following distribution conditions are possible:

• Distributing Licenses to All Devices

• Distributing Licenses to Devices in a Specified Directory

• Distributing Licenses to Devices in a Specified View

Distributing Licenses to All Devices

With Workspace Edition (WE) Product Packs, the distribution of licenses to all unlicensed devices is set by default. With all other Product Pack types, the distribution of licenses is set to conditional by default.

To distribute the licenses of a Product Pack to all devices:

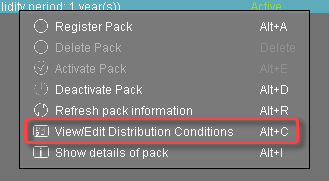

1. In the area UMS Administration > Global Configuration > Licenses > Deployment > Registered packs, open the context menu of the Product Pack pack in question and select View/Edit Distribution Conditions.






2. In the Distribution Conditions of Pack dialog, set the Automatic distribution method to Enabled.






3. Click Save.
   The licenses will be deployed; for details, please refer to Intervals for Automatic License Deployment .

Distributing Licenses to Devices in a Specified Directory

1. Create a directory and put the devices that require licenses in it.

2. In the area UMS Administration > Global Configuration > Licenses > Deployment > Registered packs, open the context menu of the Product Pack pack in question and select View/Edit Distribution Conditions.

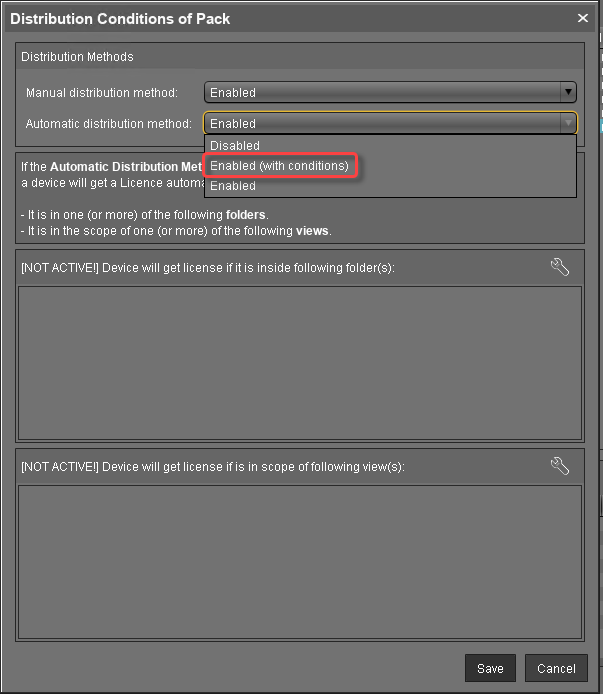

3. In the Distribution Conditions of Pack dialog, set the Automatic distribution method to Enabled (with conditions).

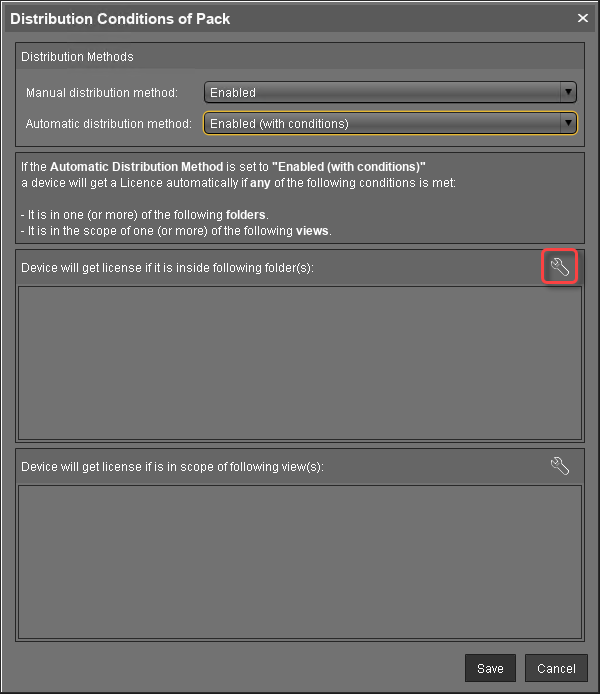

4. Click the  symbol as shown below:

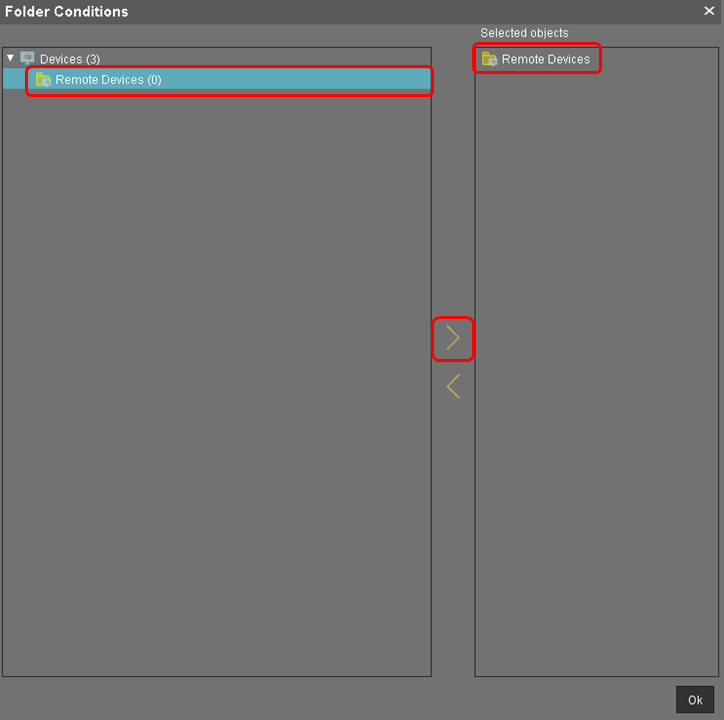

5. Click the desired folder and select it by clicking the  symbol.






6. Click Ok.

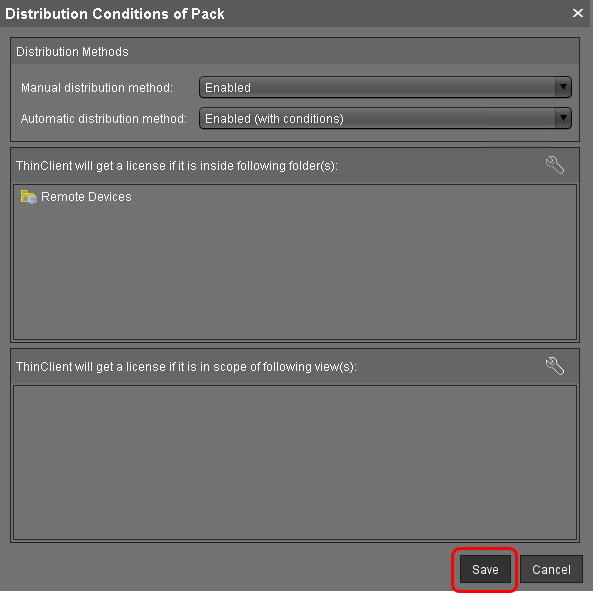

   The configured distribution condition is shown.



7. Click Save.



   The licenses will be deployed; for details, please refer to Intervals for Automatic License Deployment .

Distributing Licenses to Devices in a Specified View

1. Create a view that collects the devices that require a license.



2. In the area UMS Administration > Global Configuration > Licenses > Deployment > Registered packs, open the context menu of the Product Pack pack in question and select View/Edit Distribution Conditions.






3. In the Distribution Conditions of Pack dialog, set the Automatic distribution method to Enabled (with conditions).

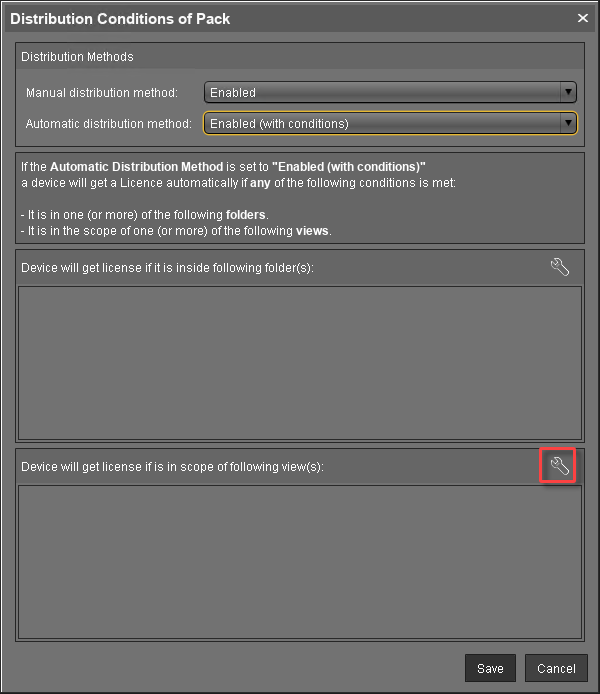

4. Click the symbol as shown below:

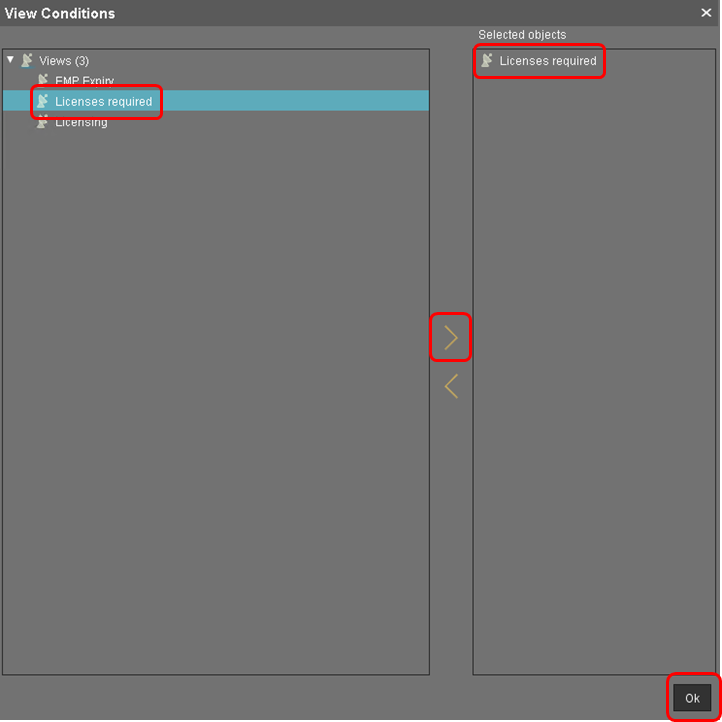

5. Click the desired view and select it by clicking the  symbol.






6. Click Ok.
   The configured distribution condition is shown.



7. Click Save.



   The licenses will be deployed; for details, please refer to Intervals for Automatic License Deployment.
