UMS Contacting the Licensing Server

The UMS requests the connection details (URL and port) from the IGEL download server at and then contacts the IGEL licensing server. Currently, the connection details are as follows:

  • URL:

  • Port: 443

The connection details may be changed in the future.

Direct Connection

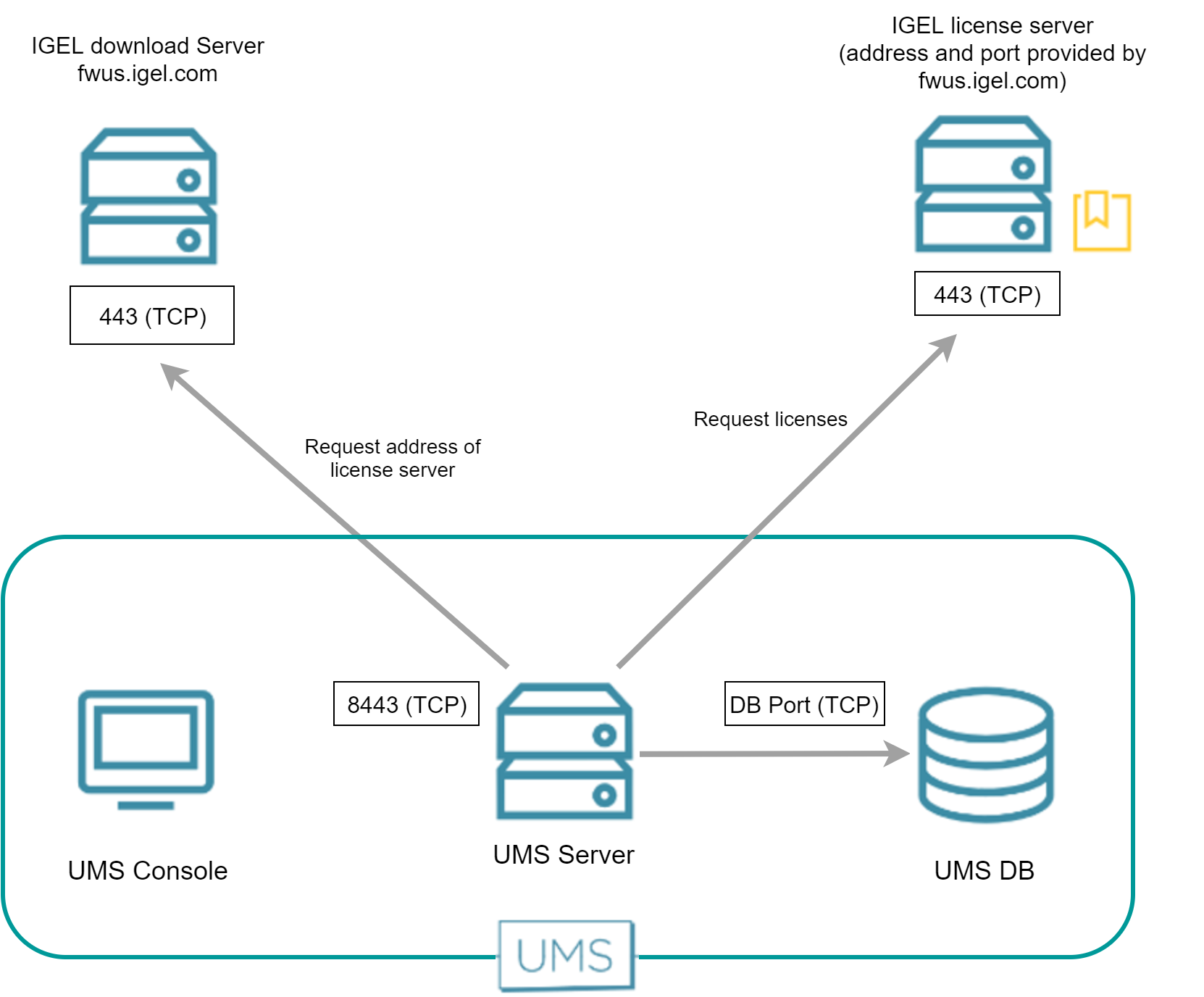

The following figure illustrates the communication between the UMS Server and the IGEL licensing server:

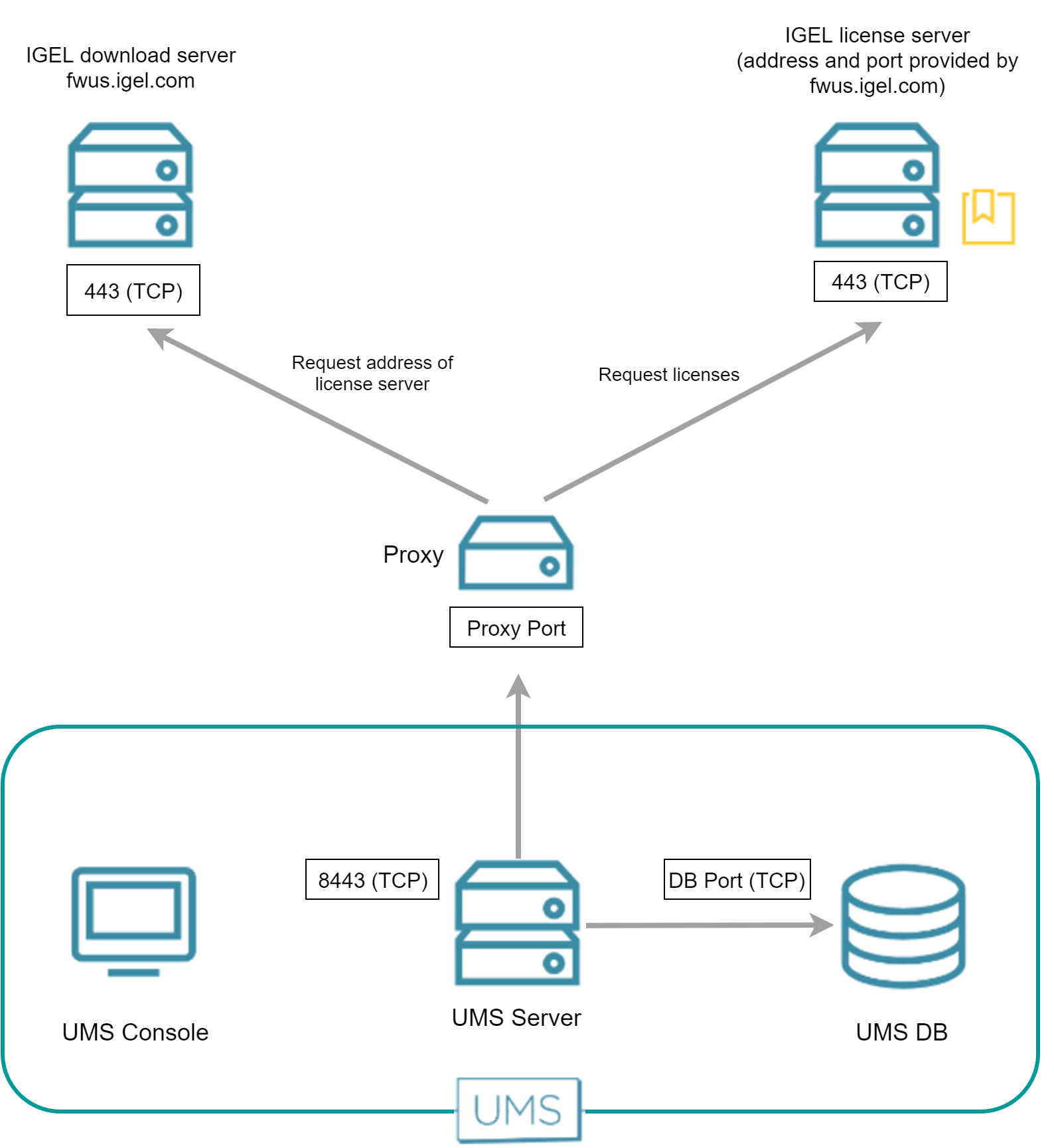

Via Proxy Server

When a proxy server is placed between the UMS and the IGEL licensing server, the port for the proxy server must be specified under UMS Administration > Global Configuration > Proxy Server.

If multiple proxies are configured, ensure to select the one that is defined for license deployment
