Effectiveness of Settings

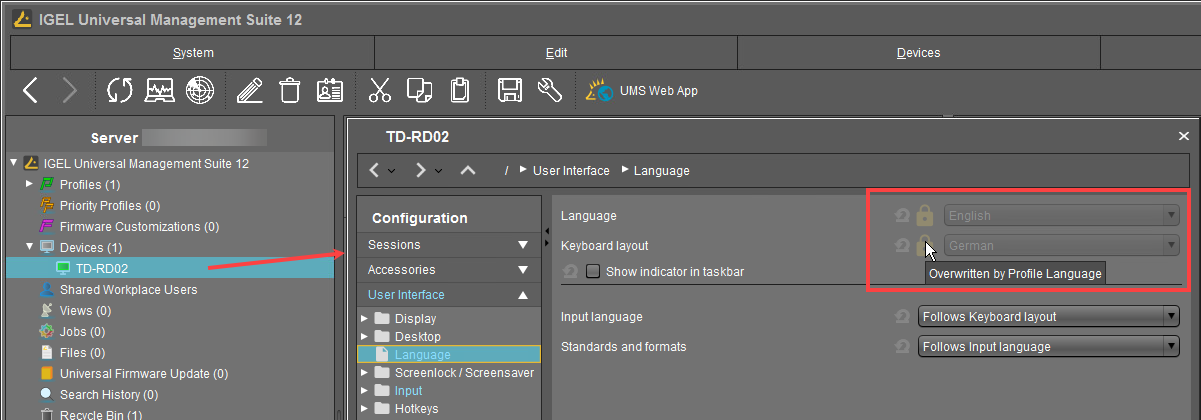

Parameters set via a profile are blocked in the configuration dialog in the UMS as well as in the IGEL Setup and indicated by a lock symbol.

These blocked settings can only be edited in the profile. The name of the profile responsible for the locked status will be shown if you move the mouse pointer over the lock symbol.

Each parameter has two value types:

• values determined by the device and

• value determined by the profiles

These values exist alongside each other, although there is a rule whereby profile settings always take precedence.

If you have set a value for a parameter in a profile and then remove the assignment to a device, the value of the parameter will be changed back to its previous device value. The profile value will not be copied to the device settings.
