UMS with External Database
Communication between the UMS Console and the UMS server happens via HTTPS. By default, the UMS server listens to TCP requests on port 8443. The port can be changed in the UMS Administrator under Settings > GUI server port.
The ports used by the UMS for TCP requests to the database are defined as follows:
Database Type | Database Port (default) | Configuration |
|---|---|---|
Apache Derby (Derby Network Server) | 1527 | (UMS Administrator) Datasource > Add... > [as DB-Type, select Derby] > Port |
MS SQL Server | 1433 | (UMS Administrator) Datasource > Add... > [as DB-Type, select SQL Server] > Port |
Oracle | 1521 | (UMS Administrator) Datasource > Add... > [as DB-Type, select Oracle] > Port |
PostgreSQL | 5432 | (UMS Administrator) Datasource > Add... > [as DB-Type, select PostgreSQL] > Port |

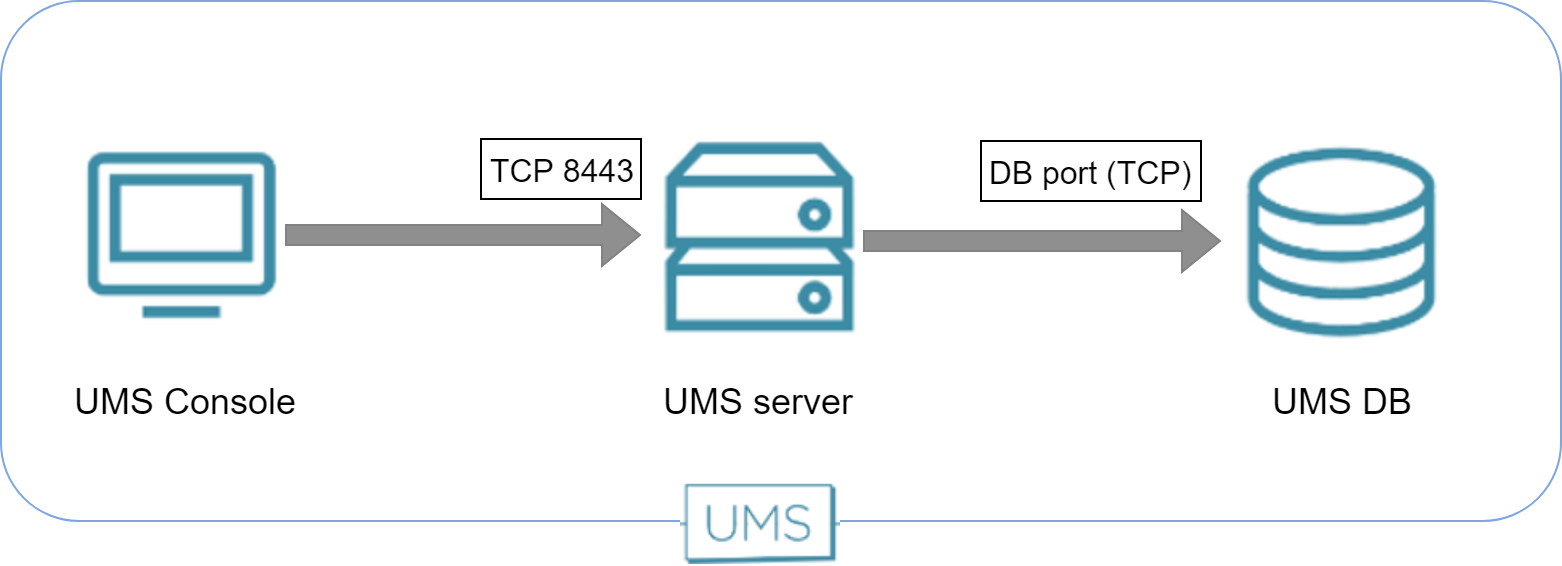

The following figure illustrates the communication between the UMS components:
