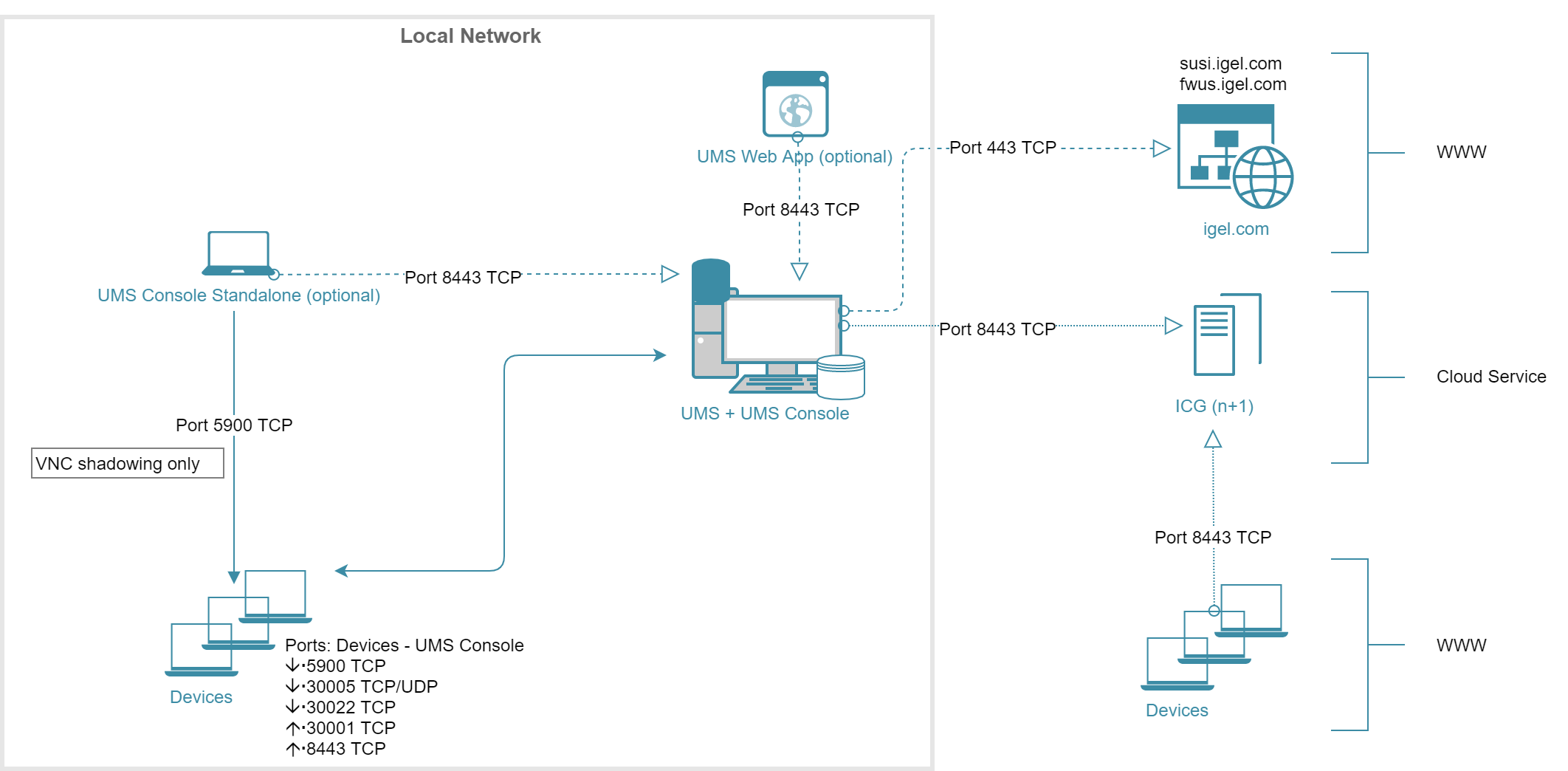

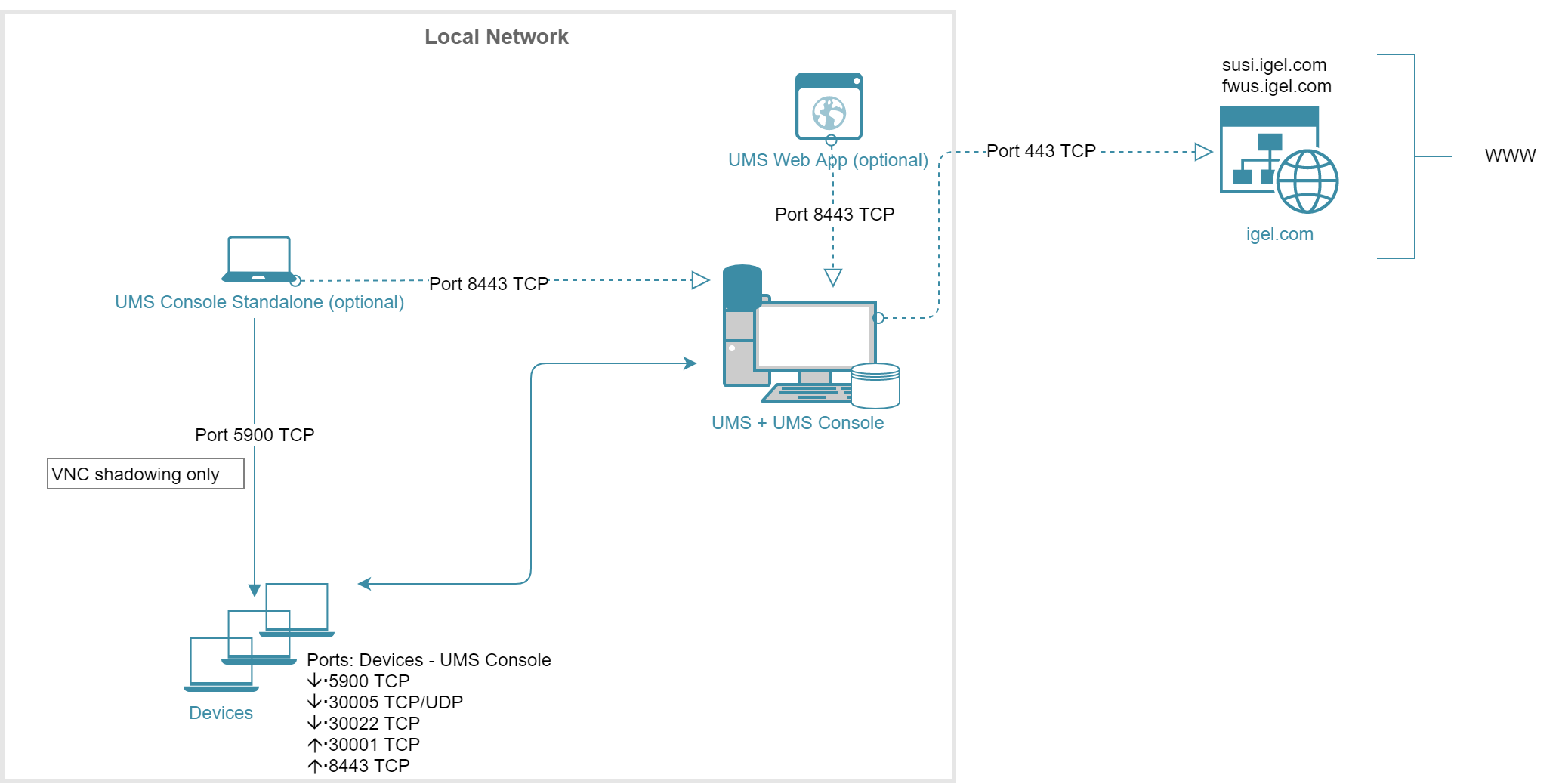

Small Environment: UMS S

Small Size UMS Installation (<5k Devices) or Demo/POV Environment with an Embedded Database

Installation Size

#Devices

#UMS Server Host

UMS Server

UMS Console Standalone

#Load Balancer Standalone

Load Balancer Standalone

Database

ICG

S

< 5.000

1 server

8 GB RAM
(UMS Web App + 1 GB)

4 CPUs

25 GB free disk space

Optional*

3 GB RAM

2 CPUs

1 GB HDD

Embedded database

1 ICG instance per 2,500 devices

Server generally:
8 GB RAM
2 CPUs
20 GB HDD

Only ICG service:
4 GB RAM
2 CPUs
2 GB HDD

* UMS Console can be installed on UMS Server host.
