You can define one or more devices as a Wake on LAN proxy.


To define a device as a Wake on LAN proxy:

  1. Logon to the UMS console.
  2. Go to UMS Administration.

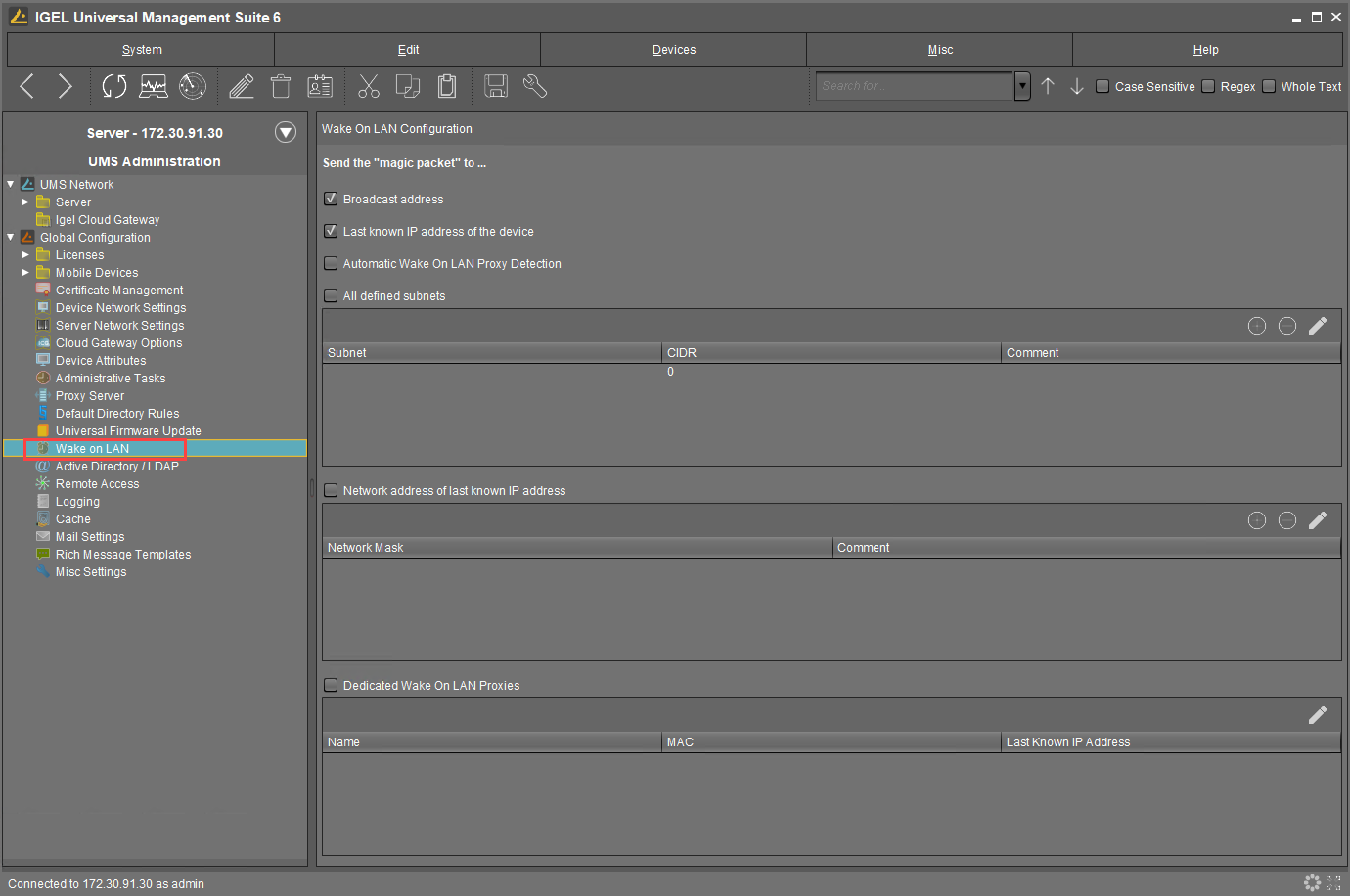

  3. Select Wake on LAN.

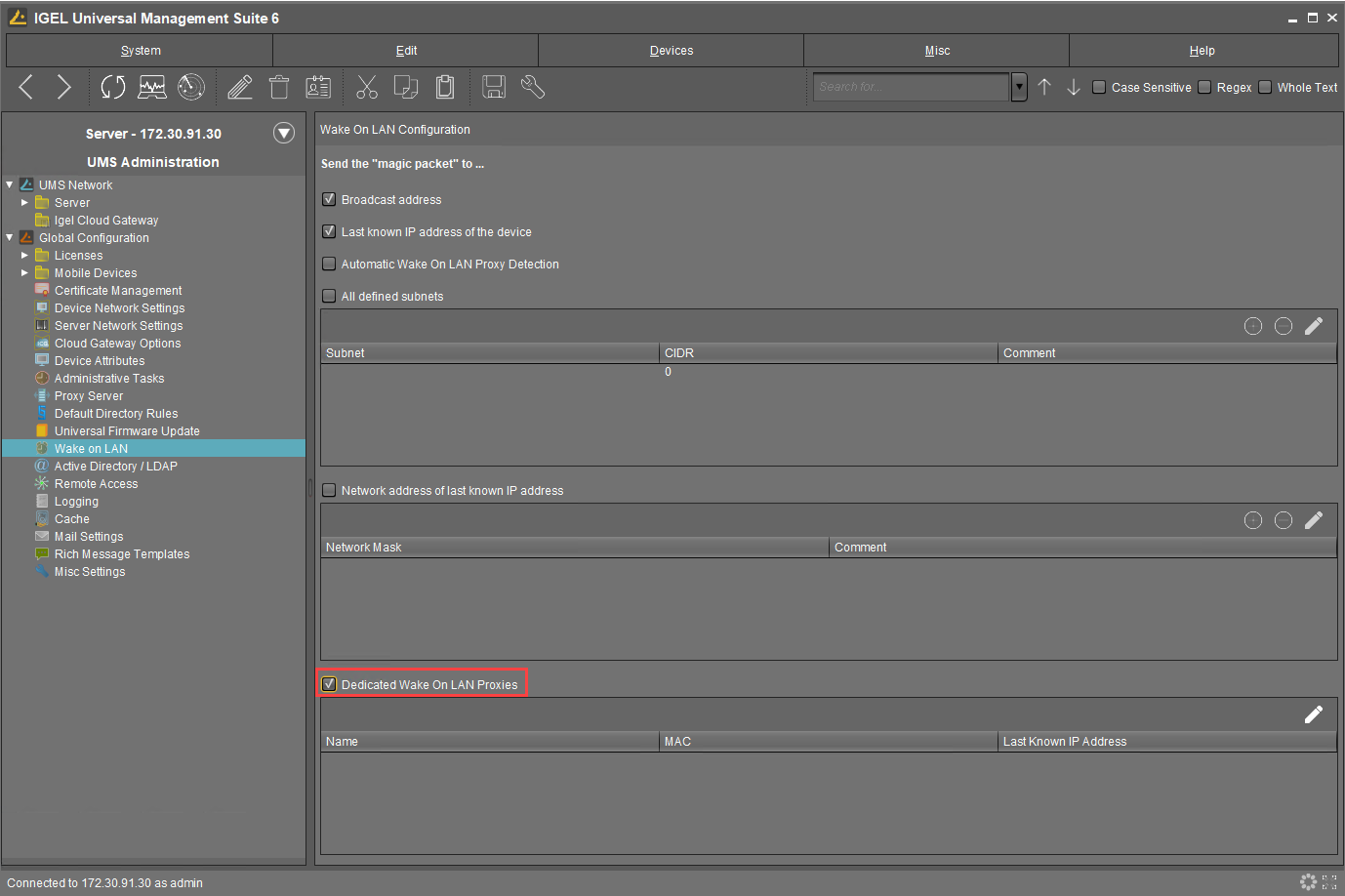

  4. Activate Dedicated Wake on LAN Proxies.

  5. Click .
    The dialog Edit Wake ON LAN Proxies opens.

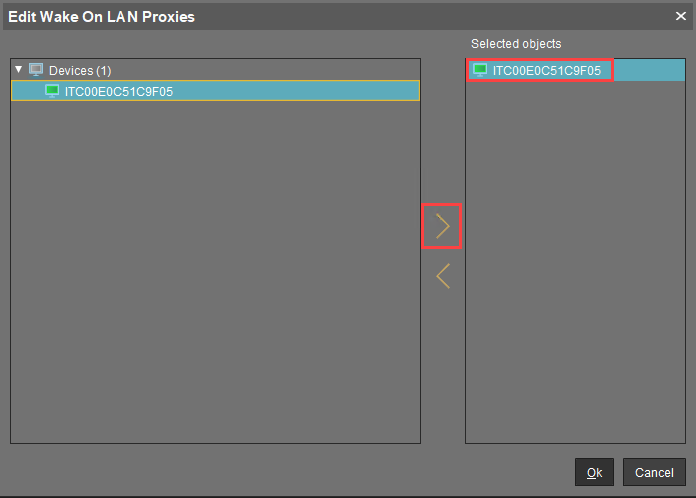

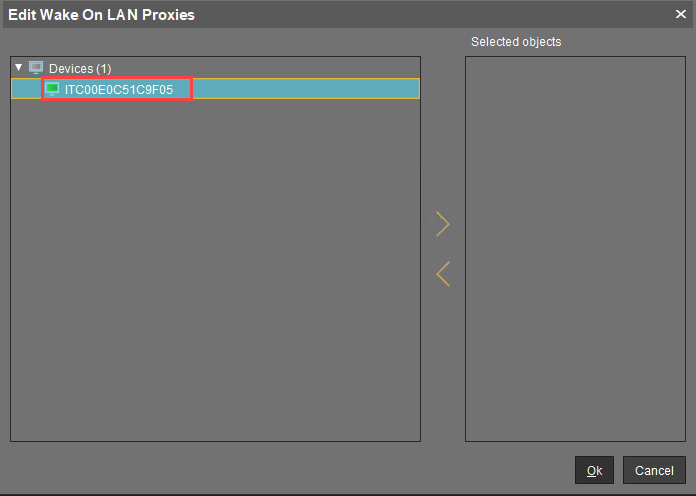

  6. Select the device you want to use as a Wake on LAN proxy.

  7. Click .
    The selected device is listed under Selected objects.

  8. Click Ok.
    The selected device is configured as a Wake on LAN proxy. In the device's registry, the parameter system.remotemanager.wol_proxy.enabled is set to true.


    A device that is configured as a Wake on LAN proxy cannot be set to standby or shut down. This lock is in effect as soon as the device has received its settings from the UMS.
