Company Logos

Menu path: Setup > System > Firmware Customization > Corporate Design > Company Logos

You can show your company logo in the screensaver and in the start menu.

Screensaver

Enable image display
☑ The image defined below will be shown as the screensaver. (default)
File for screen saver logo: Complete path for an image file or a directory that contains a number of image files.

If you enter a folder instead of a single image file as the source, all images in the folder will be displayed as a slide show. The image display time for the images can be configured. If you do not specify a file of your own, the IGEL logo will be used.

One image per monitor
☑ The image will be shown on each individual monitor rather than one image across all monitors. (default)
Image duration: Time in seconds until the image changes (default: 10)
Image display mode
- Small-sized hopping: small image that jumps across the screen
- Medium-sized hopping: larger image that jumps across the screen
- Full screen center cut out: Image is displayed across whole screen, edges can be cut off.
- Full screen letterbox: Complete image is shown. A black edge may be visible depending on the format.

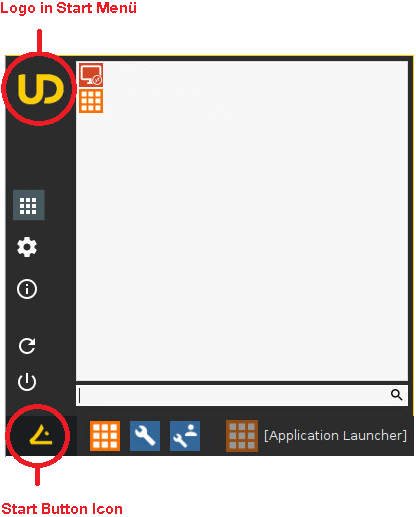

Start button icon: File name with full path to select your logo as the icon for the start menu in the taskbar. Size: 32x32 pixels
Company logo in start menu: File name with full path to show your company logo in the start menu window. Size: 64x64 pixels

In order to see the company logo in the start menu window, you must set the start menu type to Advanced. To do this, click on User Interface > Desktop > Start Menu.
