Network Settings in the IGEL UMS Web App

In the Network area of the IGEL Universal Management Suite (UMS) Web App, you can find information on all connected UMS Servers, UMS Load Balancers, and IGEL Cloud Gateways. You can also find here the OBS Routing details for IGEL Onboarding Service and specify the nickname for your UMS.


Menu path: UMS Web App > Network

1

List of all available UMS Servers / UMS Load Balancers / IGEL Cloud Gateways (ICG)

2

In the header, you can find the following:

  • Status of the selected UMS Server / UMS Load Balancer / IGEL Cloud Gateway, see "Status Displays" below.

  • Status of UMS Server / ICG connections (connected, disconnected, unknown)

  • Number of currently connected devices (only for the ICG)

3

Details for the selected UMS Server / UMS Load Balancer / IGEL Cloud Gateway

You can find the Communication Token here. The communication token can be used during the onboarding process. For more information, see How to Start with IGEL COSMOS > Onboarding IGEL OS 12 Devices.

4

Statistics for the device requests

5

  • Refresh network infromation.

  • Open the Settings area. See details below.

Status Displays

UMS Server

The following icons show the status of the installed UMS Servers.

The UMS Server is running.

The UMS Server is not running.

The status of the UMS Server is unknown (e.g. when a new server is being propagated in the network) or has not yet been processed.

The user is not authorized to view details for the UMS Server.

The UMS Server is being updated.

UMS Load Balancer

The following icons show the status of the installed UMS Load Balancers.

The Load Balancer is running.

The Load Balancer is not running.

The status of the UMS Load Balancer is unknown (e.g. when a new load balancer is being propagated in the network) or has not yet been processed.

The user is not authorized to view details for the Load Balancer.

The Load Balancer is being updated.

IGEL Cloud Gateway

The following icons show the status of the installed IGEL Cloud Gateways.

The IGEL Cloud Gateway is running.

The IGEL Cloud Gateway is not running.

The status of the IGEL Cloud Gateway is unknown or has not yet been processed.

The user is not authorized to view details for the IGEL Cloud Gateway.

The IGEL Cloud Gateway is being updated.

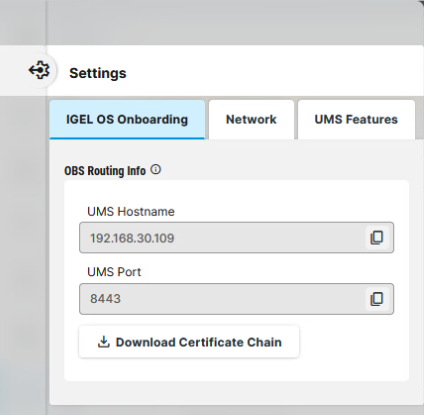

Settings

Click image-20240614-060453.png to open the Settings area.

IGEL OS Onboarding

Here, you can find OBS Routing information which is required if you use IGEL Onboarding Service. For details, see How to Start with IGEL COSMOS > Initial Configuration of the IGEL Onboarding Service (OBS).

To copy the data, click image-20240614-060440.png .


UMS Hostname

Hostname (Fully Qualified Domain Name) or IP address of the UMS Server.

If configured, the Cluster Address or the Public Address is used here (in the order given).

UMS Port

Port under which the UMS can be reached. The default port of the UMS web server is 8443. For details on the ports used by the UMS, see IGEL UMS Communication Ports

If configured, the Cluster Address Port or the Public Web Port is used here (in the order given).

Download Certificate Chain

Downloads the UMS root certificate with .crt file extension.

Network

Nickname

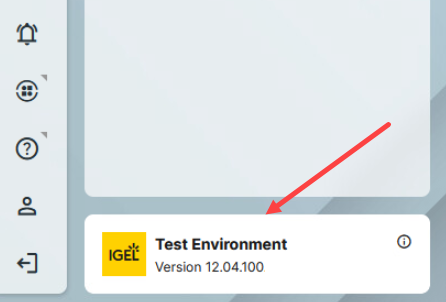

A name specified here is displayed in the info box of the UMS Web App as well as in the browser tab and helps to distinguish one UMS instance from another.

To change the value, permission for the node Server Network Settings under UMS Console > UMS Administration > Global Configuration is required.

For how to set rights, see Access Rights in the Administration Area.

UMS Features

Permission for the node UMS Features under UMS Console > UMS Administration > Global Configuration is required.

For how to set rights, see Access Rights in the Administration Area.

Enable Template Profiles

image-20240606-144015.pngTemplate profiles are enabled. For information on template profiles, see Template Profiles in the IGEL UMS.

Enable Priority Profiles

image-20240606-144020.png Priority profiles are enabled. For information on priority profiles, see Priority Profiles in the IGEL UMS.

Enable Insight Service

image-20240606-144022.png Enables IGEL Insight Service if you accept the privacy policy in the dialog opened and click Activate. When you activate the IGEL Insight Service, IGEL collects specific analytical and usage data; see IGEL Insight Service. For details, see How to Start with IGEL COSMOS > IGEL Insight Service.
image-20240606-144029.png Disables IGEL Insight Service.
