IGEL UMS Maintenance Tasks

There are a few items that are recommended to configure after your IGEL Universal Management Suite (UMS) server(s) are set up to make sure they are properly maintained and running as efficiently as possible. This article outlines some recommended configurations that should be made to make sure your UMS database and file structure are maintained properly.


Recommended Administrative Tasks (Scheduled Jobs)

There are multiple tasks that should be scheduled to properly maintain a UMS server/cluster and database.

As part of the tasks, you will be asked to provide a location to back up the data before deleting them. This can be done on a mapped (lettered) drive in Windows, or a mounted remote location on Linux if required.

Scheduling

It is recommended to schedule each task on a different day, two hours after any backups are made. This will give each task enough time to complete and allow for a rollback via the backup if data is removed that is required.

Recommended Tasks


Task Name

Task Details

Task Notes

1

Delete job execution data

UMS Administration > Administrative Tasks > Dialog Create Administrative Task > Action Delete job execution data

With this administrative task, you can delete the job execution results listed under Jobs > [job name].

For details, see Delete Job Execution Data.

2

Delete process events

UMS Administration > Administrative Tasks > Dialog Create Administrative Task > Action Delete process events

With this administrative task, you can delete the process events displayed under UMS Administration > UMS Network > Events > [timespan].

For details, see Delete Process Events.

3

Delete administrative task execution data

UMS Administration > Administrative Tasks > Dialog Create Administrative Task > Action Delete administrative task execution data

With this administrative task, you can delete the results of the execution of administrative tasks listed under UMS Administration > Global Configuration > Administrative Tasks > [task name].

For details, see Delete Administrative Task Execution Data.

4

Delete asset info history

UMS Administration > Administrative Tasks > Dialog Create Administrative Task > Action >Delete asset info history

With this administrative task, you can delete the stored asset information that is displayed under Devices > [device name].

For details, see Delete Asset Information History.

5

Delete logging data

UMS Administration > Administrative Tasks > Dialog Create Administrative Task > Action >Delete logging data

With this administrative task, you can delete the log messages that can be configured under UMS AdministrationGlobal Configuration > Logging. For details, see Delete Logging Data.

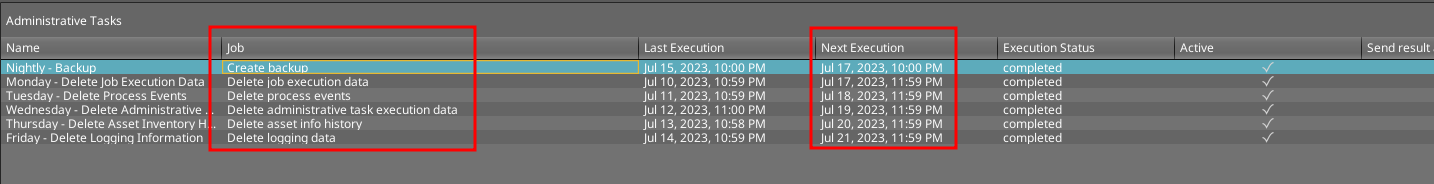

Example:

UMS Server Backups

Backup Schedule

It is recommended to schedule a backup at least once a week of the UMS database and local file repositories.

  • This could be scheduled as frequently as once a day during device deployment or mass configuration changes.

This backup should be scheduled to occur at a minimum of two hours after any other Administrative Tasks are scheduled to run.

External Database

For external / third-party databases, such as Postgres and Microsoft SQL, you will need to utilize their respective backup options, or a third-party software to manage database backups.

For the internal IGEL database, see IGEL Embedded Database.

Local Files

For UMS, the IGEL database is the most critical component that needs to be backed up, and this should be handled via a third-party application connected to your external database. However, some local directories should be backed up outside of UMS. These locations are noted below.

Directory

Usage

%INSTALL_DIR%/RemoteManager/rmguiserver/webapps/ums_filetransfer

Contains all transfer files deployed via UMS including Universal Firmware Packages, wallpaper files, icon files, and SSL certificates, etc.

UMS12 and later:

%INSTALL_DIR%/RemoteManager/rmguiserver/persistent/ums-appproxy

Contains OS 12 application packages for the local UMS Web Proxy

By default the IGEL install directory (%INSTALL_DIR%) will be located in one of the locations below. If UMS was installed to a different directory, please update the path accordingly:

  • Windows: C:\Program Files\IGEL\ or C:\Program Files(x86)\IGEL\

  • Linux: /opt/IGEL/

IGEL Embedded Database

For the embedded database, there are a couple more items that are recommended to perform.

IGEL recommends moving to an external database for production environments, so this should only be required in POC / Lab environments. However, some smaller environments may still utilize the embedded database in production.

Local Database Optimization

If you are using the IGEL embedded database, it is recommended to run a database optimization at least every 3 months, and maybe more depending on the size of your environment. You can find more details on this process under Optimizing the Active Embedded DB, but keep in mind that this will halt services on UMS and the console will be unavailable until it completes.

Local Database Backup

If you are using the IGEL embedded database, then you will want to schedule an additional administrative task in UMS to perform this action.

Task Name

Task Details

Notes

Database Backup

Creates a backup of the database, and other optional components.

  • Recommended to backup only the database, but you can also select the transfer files as well. Doing so may take a long time, and will create a larger backup file.

  • Backing up the server configuration is not required or recommended
