Proxy Server Configuration in the IGEL UMS
In the IGEL Universal Management Suite (UMS), you can configure proxy servers.

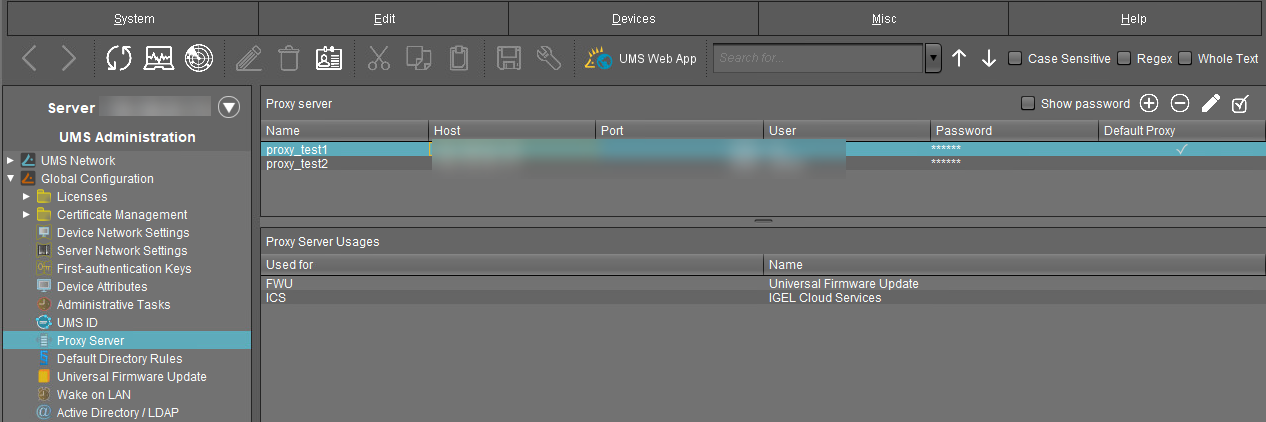

Menu path: UMS Console > UMS Administration > Global Configuration > Proxy Server
In this area, you can add and configure proxy servers in order to use them in the following scenarios:
IGEL Cloud Gateway - Managing an ICG Connection in the IGEL UMS
IGEL Cloud Services (Note that a proxy set under UMS Administration > Global Configuration > Licenses > Deployment > Edit proxy configuration is used not only for the automatic license distribution, i.e. not only for the communication with the IGEL License Portal, but for all IGEL Cloud Services, including IGEL Onboarding Service, IGEL Insight Service, IGEL App Portal as well as for UMS as an Update Proxy)
Universal Firmware Update - Distributing Firmware in the IGEL UMS (if configured, this proxy is also used for UMS update check)
The IGEL Cloud Services and Universal Firmware Update scenarios are automatically linked to the default proxy server.
The settings for the IGEL Cloud Gateway are not changed; the proxy server must be added manually.
Proxy Server
All configured proxy servers are shown in this list.
Show password
☑ Passwords are made visible in the list.
☐ Passwords are not shown. (Default)
Add proxy server | |
Delete proxy server | |
Edit proxy server | |
Define the selected proxy server as a default server |
Only proxy servers that are not used can be deleted. The proxy server added first will automatically be the default proxy server.
Proxy Server Usages
All uses for the selected proxy servers are shown in this list.
The entries in this list appear automatically as soon as an application was linked to a selected proxy server.
