End-of-Life Products

In this list you can find the end-of-life dates of all IGEL products (from 2010 onwards) as well as the end-of-maintenance dates of the referring firmware.

For older devices, please refer to the EOL archive.

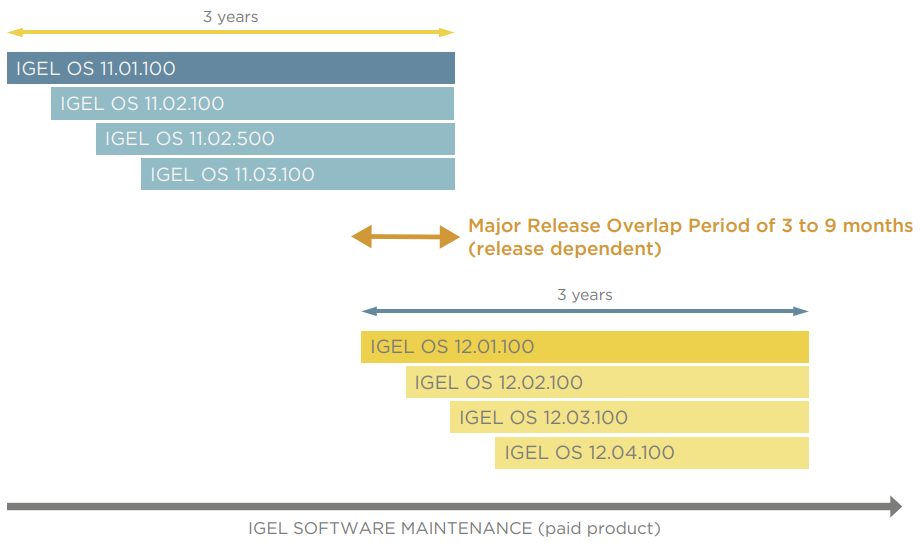

The following figure illustrates the lifecycle of an IGEL device:


IGEL Devices (Hardware and Software)

Model Name Product ID Hardware Name Processor RAM Flash Operating System End-of-life End-of-maintenance (firmware) Last Firmware Released -
Original firmware
Last Firmware Released -
After Upgrade
Last UMS Version Supported End of External Support
UD9-720 LX 720 Samsung 930 XT AMD Sempron 2100+ 1 GHz 512 MB 1 GB IGEL Linux v4 2010-02-08 2013-02-09 4.11.260 --- 4.03.100
UD9-720 ES 720 Samsung 930 XT AMD Sempron 2100+ 1 GHz 1 GB 2 GB Windows Embedded Standard 2009 2010-02-08 2013-02-09 2.07.500 --- 4.03.100
UD7-720 LX 720 H700C VIA C7 1.5 GHz (LP) 512 MB 1 GB IGEL Linux v4 2010-12-31 2014-01-01 4.04.550 --- 4.05.100
UD7-720 ES 720 H700C VIA C7 1.5 GHz (LP) 1 GB 2 GB Windows Embedded Standard 2009 2010-12-31 2014-01-01 2.13.100 --- 4.05.100
IGEL one   L100 VIA Eden 400 MHz 512 MB 1 GB IGEL Linux v4 2010-12-31 2014-01-01 4.14.300 --- 4.05.100
UD3-x20 LX 120 - 420 - 720 M300C VIA Eden 800 MHz 512 MB 1 GB IGEL Linux v4 2011-02-28 2014-03-01 4.14.300 --- 4.06.100
UD3-x21 LX 121 - 421 - 721 M300C VIA Eden 1 GHz 512 MB 1 GB IGEL Linux v4 2011-02-28 2014-03-01 4.14.300 --- 4.06.100
UD3-x20 CE 120 - 420 M300C VIA Eden 800 MHz 512 MB 512 MB Windows Embedded CE 2011-02-28 2014-03-01 6.04.500 --- 4.06.100
UD3-x21 CE 121 - 421 M300C VIA Eden 1 GHz 512 MB 512 MB Windows Embedded CE 2011-02-28 2014-03-01 6.04.500 --- 4.06.100
UD3-x20 ES 120 - 420 - 720 M300C VIA Eden 800 MHz 1 GB 2 GB Windows Embedded Standard 2009 2011-02-28 2014-03-01 2.13.100 --- 4.06.100
UD3-x21 ES 121 - 421 - 721 M300C VIA Eden 1 GHz 1 GB 2 GB Windows Embedded Standard 2009 2011-02-28 2014-03-01 2.13.100 --- 4.06.100
UD2-x20 LX 120 - 420 - 720 D200 VIA Eden 400 MHz 512 MB 1 GB IGEL Linux v4 2011-09-30 2014-10-01 4.14.300 --- 4.07.100
UD2-x21 LX 121 - 421 - 721 D200 VIA Eden 500 MHz 512 MB 1 GB IGEL Linux v4 2011-09-30 2014-10-01 4.14.300 --- 4.07.100
UD2-x20 CE 120 - 420 D200 VIA Eden 400 MHz 512 MB 512 MB Windows Embedded CE 2011-09-30 2014-10-01 6.04.500 --- 4.07.100
UD2-x21 CE 121 - 421 D200 VIA Eden 500 MHz 512 MB 512 MB Windows Embedded CE 2011-09-30 2014-10-01 6.04.500 --- 4.07.100
UD2-x20 ES 120 - 420 - 720 D200 VIA Eden 400 MHz 1 GB 2 GB Windows Embedded Standard 2009 2011-09-30 2014-10-01 2.13.100 --- 4.07.100
UD2-x21 ES 121 - 421 - 721 D200 VIA Eden 500 MHz 1 GB 2 GB Windows Embedded Standard 2009 2011-09-30 2014-10-01 2.13.100 --- 4.07.100
UD5-x20 LX 120 - 420 - 720 H700C VIA C7 1.5GHz (LP) 512 MB 1 GB IGEL Linux v4 2011-09-30 2014-10-01 4.14.300 --- 4.07.100
UD5-x20 ES 120 - 420 - 720 H700C VIA C7 1.5GHz (LP) 1 GB 2 GB Windows Embedded Standard 2009 2011-09-30 2014-10-01 2.13.100 --- 4.07.100
UD2-LX MultiMedia   D510C Texas Instruments TMS320DM8148 Cortex A8, 1 GHz 1 GB DDR3 2 GB IGEL Linux v4 (ARM) 2013-11-01 2016-11-02 1.09.210 --- 5.03.100
UD2-x30 LX 130 - 430 - 730 D210 VIA Eden 500 MHz 1 GB 1 GB IGEL Linux v4 2015-05-31 2018-06-01 4.14.300 5.12.100 5.08.120
UD2-x31 LX 131 - 431 - 731 D210 VIA Eden ULV 1 GHz 1 GB 2 GB IGEL Linux v4 2015-05-31 2018-06-01 4.14.300 5.12.100 5.08.120
UD2-LX 30 30 D210 VIA Eden 500 MHz 1 GB 1 GB IGEL Linux v5 2015-05-31 2018-06-01 5.13.100 --- 5.08.120
UD2-LX 31 31 D210 VIA Eden ULV 1 GHz 1 GB 2 GB IGEL Linux v5 2015-05-31 2018-06-01 5.13.100 --- 5.08.120
IZ2-HDX31 / IZ2-RFX31 / IZ2-HORIZON31 31 D210 VIA Eden ULV 1 GHz 1 GB 2 GB IGEL Linux v5 2015-05-31 2015-05-31 5.06.100 --- 4.09.100
UD3-x30 LX 130 - 430 - 730 M310C VIA Nano E-Series 512 MB 1 GB IGEL Linux v4 2013-11-01 2016-11-02 4.14.300 --- 5.03.100
UD3-x31 LX 131 - 431 - 731 M310C VIA Nano 1 GHz 1 GB 1 GB IGEL Linux v4 2013-11-01 2016-11-02 4.14.300 5.12.100 5.03.100
UD3-LX 31 31 M310C VIA Nano 1 GHz 1 GB 1 GB IGEL Linux v5 2013-11-01 2016-11-02 5.10.100 --- 5.03.100
UD3-x30 ES 130 - 430 - 730 M310C VIA Nano E-Series 1 GB 2 GB Windows Embedded Standard 2009 2013-11-01 2016-11-02 2.14.100 --- 5.03.100
UD3-x31 ES 131 - 431 - 731 M310C VIA Nano 1 GHz 1 GB 2 GB Windows Embedded Standard 2009 2013-11-01 2016-11-02 2.14.100 --- 5.03.100
UD3-730 W7 oder UD3-W7 30c 730 M310C VIA Nano E-Series 1 GB 2 GB Windows 7 Embedded 2013-11-01 2016-11-02 3.12.100 --- 5.03.100
UD3-731 W7 oder UD3-W7 31c 731 M310C VIA Nano 1 GHz 2 GB 4 GB Windows 7 Embedded 2013-11-01 2016-11-02 3.12.100 --- 5.03.100
UD5-x30 LX 130 - 430 - 730 H710C VIA Nano 1.3 GHz 1 GB 1 GB IGEL Linux v4 2013-05-31 2016-06-01 4.14.300 5.12.100 5.02.100
UD5-x30 ES 130 - 430 - 730 H710C VIA Nano 1.3 GHz 1 GB 2 GB Windows Embedded Standard 2009 2013-05-31 2016-06-01 2.14.100 --- 5.02.100
UD5-LX 30 30 H710C VIA Nano 1.3 GHz 1 GB 1 GB IGEL Linux v5 2013-05-31 2016-06-01 5.09.100 --- 5.02.100
UD5-730 W7  oder  UD5-W7 30c 730 (30) H710C VIA Nano 1.3 GHz 2 GB 4 GB Windows 7 Embedded 2013-05-31 2016-06-01 3.12.100 --- 5.02.100
UD9-730 LX 730 TC215 Intel Atom N270 1,6 GHz (Single Core) 1 GB 2 GB IGEL Linux v4 2013-11-01 2016-11-02 4.14.300 5.12.100 5.03.100
UD9-731 LX 731 (Touch) TC215 Intel Atom N270 1,6 GHz (Single Core) 1 GB 2 GB IGEL Linux v4 2013-11-01 2016-11-02 4.14.300 5.12.100 5.03.100
UD9-LX 30 30 TC215 Intel Atom N270 1,6 GHz (Single Core) 1 GB 2 GB IGEL Linux v5 2016-04-17 2019-04-18
UD9-LX Touch 31 31 (Touch) TC215 Intel Atom N270 1,6 GHz (Single Core) 1 GB 2 GB IGEL Linux v5 2016-04-17 2019-04-18
UD9-730 ES 730 TC215 Intel Atom N270 1,6 GHz (Single Core) 1 GB 2 GB Windows Embedded Standard 2009 2013-11-01 2016-11-02 2.14.100 --- 5.03.100
UD9-731 ES 731 (Touch) TC215 Intel Atom N270 1,6 GHz (Single Core) 1 GB 2 GB Windows Embedded Standard 2009 2013-11-01 2016-11-02 2.14.100 --- 5.03.100
UCx-x20 LX 120 - 420 - 720   --- --- --- IGEL Linux v4 2013-11-01 2016-11-02 4.14.300 5.10.100 5.03.100
UD3-x40 LX 140 - 440 - 740 M320C VIA Eden X2 1 GHz 1 GB DDR3 2 GB SATA SSD IGEL Linux v4 2014-02-28 2017-03-01 4.14.300 5.12.100 5.05.100
UD3-LX 40 40 M320C VIA Eden X2 1 GHz 1 GB DDR3 2 GB SATA SSD IGEL Linux v5 2014-02-28 2017-03-01 5.10.100 10.03.500 5.05.100
UD3-740 W7  oder  UD3-W7 40c 740 (40) M320C VIA Eden X2 1 GHz 2 GB DDR3 4 GB SATA SSD Windows 7 Embedded 2014-02-28 2017-03-01 3.12.100 --- 5.05.100
IZ3-HDX40 / IZ3-RFX40 / IZ3-HORIZON40 40 M320C VIA Eden X2 1 GHz 1 GB DDR3 2 GB SATA SSD IGEL Linux v5 2014-02-28 2014-02-28 5.02.100 --- 4.06.100
IZ1-RFX / IZ1-HDX   D510C Texas Instruments TMS320DM8148 Cortex A8, 1 GHz 1 GB DDR3 2 GB IGEL Linux v4 (ARM) 2014-12-31 2014-12-31 1.09.200 --- 4.08.100
UD5-x40 LX 140 - 440 - 740 H820C Intel Celeron 847 1.1GHz 1 GB DDR3 2 GB SATA SSD IGEL Linux v4 2013-11-01 2016-11-02 4.14.300 5.12.100 5.03.100
UD5-LX 40 40 H820C Intel Celeron 847 1.1GHz 1 GB DDR3 2 GB SATA SSD IGEL Linux v5 2015-01-12 2018-01-13 5.12.100 10.04.100 5.08.120
UD5-740 W7  oder  UD5-W7 40c 740 (40) H820C Intel Celeron 847 1.1GHz 2 GB DDR3 4 GB SATA SSD Windows 7 Embedded 2015-01-12 2018-01-13 3.13.100 --- 5.08.120
UD5-W7+ 40c 40 H820C Intel Celeron 847 1.1GHz 2 GB DDR3 8 GB SATA SSD Windows 7 Embedded + 2015-01-12 2018-01-13 3.13.100 --- 5.08.120
UD9-730 W7 730 TC215 Intel Atom N270 1,6 GHz (Single Core) 2 GB 4 GB Windows 7 Embedded 2016-04-17 2019-04-18
UD9-731 W7 731 (Touch) TC215 Intel Atom N270 1,6 GHz (Single Core) 2 GB 4 GB Windows 7 Embedded 2016-04-17 2019-04-18
UD9-W7 30c 30c TC215 Intel Atom N270 1,6 GHz (Single Core) 2 GB 4 GB Windows 7 Embedded 2016-04-17 2019-04-18
UD9-W7+ 30c 30c TC215 Intel Atom N270 1,6 GHz (Single Core) 2 GB 8 GB Windows 7 Embedded + 2016-04-17 2019-04-18
UD9-W7 Touch 31c 31c (Touch) TC215 Intel Atom N270 1,6 GHz (Single Core) 2 GB 8 GB Windows 7 Embedded 2016-04-17 2019-04-18
UD9-W7+ Touch 31c 31c (Touch) TC215 Intel Atom N270 1,6 GHz (Single Core) 2 GB 8 GB Windows 7 Embedded + 2016-04-17 2019-04-18
UD10-LX 10 10 TC236 VIA Eden X2 1 GHz 1 GB 2 GB IGEL Linux v5 2016-09-30 2019-10-01
UD10-LX Touch 10 10 (Touch) TC236 VIA Eden X2 1 GHz 1 GB 2 GB IGEL Linux v5 2016-09-30 2019-10-01
UD10-W7 10c 10c TC236 VIA Eden X2 1 GHz 2 GB 4 GB Windows 7 Embedded 2016-09-30 2019-10-01 3.12.100 ---
UD10-W7+ 10c 10c TC236 VIA Eden X2 1 GHz 2 GB 8 GB Windows 7 Embedded + 2016-09-30 2019-10-01 3.12.100 ---
UD10-W7 Touch 10c 10c (Touch) TC236 VIA Eden X2 1 GHz 2 GB 4 GB Windows 7 Embedded 2016-09-30 2019-10-01 3.12.100 ---
UD10-W7+ Touch 10c 10c (Touch) TC236 VIA Eden X2 1 GHz 2 GB 8 GB Windows 7 Embedded + 2016-09-30 2019-10-01 3.12.100 ---
UD3-LX 41 41 M330C VIA Eden X2 1 GHz 1 GB DDR3 2 GB SATA SSD IGEL Linux v5 2016-02-11 2019-02-12
UD3-LX 42 42 M330C VIA Eden X2 1 GHz 1 GB DDR3 2 GB SATA SSD IGEL Linux v5 2016-02-11 2019-02-12
UD3-W7 41c 41 M330C VIA Eden X2 1 GHz 2 GB DDR3 4 GB SATA SSD Windows 7 Embedded 2016-02-11 2019-02-12
UD3-W7 42c 42 M330C VIA Eden X2 1 GHz 2 GB DDR3 4 GB SATA SSD Windows 7 Embedded 2016-02-11 2019-02-12
UD3-W7+ 42c 42 M330C VIA Eden X2 1 GHz 2 GB DDR3 8 GB SATA SSD Windows 7 Embedded + 2016-02-11 2019-02-12
IZ3-HDX41 / IZ3-RFX41 / IZ3-HORIZON41 41 M330C VIA Eden X2 1 GHz 1 GB DDR3 2 GB SATA SSD IGEL Linux v5 2016-02-11 2016-02-11 5.08.100 --- 5.01.100
IZ3-HDX42 / IZ3-RFX42 / IZ3-HORIZON42 42 M330C VIA Eden X2 1 GHz 1 GB DDR3 2 GB SATA SSD IGEL Linux v5 2016-02-11 2016-02-11 5.08.100 --- 5.01.100
UD5-LX 50 50 H830C Intel Celeron J1800 2,41 – 2,58 GHz (Dual-Core) 2 GB DDR3L 4 GB SATA SSD IGEL Linux v5 2017-10-15 2020-10-16
UD5-LX 50 50 H830C Intel Celeron J1800 2,41 – 2,58 GHz (Dual-Core) 2 GB DDR3L 4 GB SATA SSD IGEL OS 10 2017-10-15 2020-10-16
UD5-W7 50c 50 H830C Intel Celeron J1800 2,41 – 2,58 GHz (Dual-Core) 4 GB DDR3L 32 GB SATA SSD Windows 7 Embedded 2017-10-15 2020-10-16
UD5-W7+ 50c 50 H830C Intel Celeron J1800 2,41 – 2,58 GHz (Dual-Core) 4 GB DDR3L 32 GB SATA SSD Windows 7 Embedded + 2017-10-15 2020-10-16
UD5-W10 50c 50 H830C Intel Celeron J1800 2,41 – 2,58 GHz (Dual-Core) 4 GB DDR3L 32 GB SATA SSD Windows 10 IoT 2017-10-15 2020-10-16
UD6-LX 51 51 H830C Intel Celeron J1900 1.99 – 2.42 GHz (Quad-Core) 2 GB DDR3L 4 GB SATA SSD IGEL Linux v5 2017-12-30 2020-12-31
UD6-W7 51c 51 H830C Intel Celeron J1900 1.99 – 2.42 GHz (Quad-Core) 4 GB DDR3L 32 GB SATA SSD Windows 7 Embedded 2017-10-20 2020-10-21
UD6-W7+ 51c 51 H830C Intel Celeron J1900 1.99 – 2.42 GHz (Quad-Core) 4 GB DDR3L 32 GB SATA SSD Windows 7 Embedded + 2017-10-20 2020-10-21
UD2-LX 40 40 D220 Intel Atom E3815 1.46 GHz (Single-Core) 2 GB DDR3L 4 GB SATA SSD IGEL Linux v5 2017-12-30 2020-12-31
IZ2-HDX40 / IZ2-RFX40 / IZ2-HORIZON40 40 D220 Intel Atom E3815 1.46 GHz (Single-Core) 2 GB DDR3L 4 GB SATA SSD IGEL Linux v5 2017-12-30 2017-12-31 5.12.100 10.03.100 5.07.100
UCx-LX     --- --- --- IGEL Linux v5 2017-12-30 2020-12-31
UD3-LX 50 50 M340C AMD Steppe Eagle GX-412HC 1,2 - 1,6 GHz (Quad-Core) 2 GB DDR3L 4 GB SATA SSD IGEL Linux v5 2017-12-30 2020-12-31
UD3-LX 50 50 M340C AMD Steppe Eagle GX-412HC 1,2 - 1,6 GHz (Quad-Core) 2 GB DDR3L 4 GB SATA SSD IGEL OS 10 2018-02-18 2021-03-01
UD3-W7+ 50 50 M340C AMD Steppe Eagle GX-412HC 1,2 - 1,6 GHz (Quad-Core) 2 GB DDR3L 32 GB SATA SSD Windows 7 Embedded + 2017-10-20 2020-10-21
UD3-W10 50c 50 M340C AMD Steppe Eagle GX-412HC 1,2 - 1,6 GHz (Quad-Core) 2 GB DDR3L 32 GB SATA SSD Windows 10 IoT 2018-02-28 2021-03-01
IZ3-HDX50 / IZ3-RFX50 / IZ3-HORIZON50 50 M340C AMD Steppe Eagle GX-412HC 1,2 - 1,6 GHz (Quad-Core) 2 GB DDR3L 4 GB SATA SSD IGEL Linux v5 2017-12-30 2017-12-31 5.12.100 10.03.100 5.07.100
IZ3-HDX50 / IZ3-RFX50 / IZ3-HORIZON50 50 M340C AMD Steppe Eagle GX-412HC 1,2 - 1,6 GHz (Quad-Core) 2 GB DDR3L 4 GB SATA SSD IGEL OS 10 2018-02-28 2021-03-01
UD9-LX40 40 TC215B Intel Celeron J1900 1.99 – 2.42 GHz (Quad-Core) 2 GB DDR3L 4 GB SATA SSD IGEL Linux v5 2017-12-30 2020-12-31
UD9-LX41 41 (Touch) TC215B Intel Celeron J1900 1.99 – 2.42 GHz (Quad-Core) 2 GB DDR3L 4 GB SATA SSD IGEL Linux v5 2017-12-30 2020-12-31
UD9-W740c 40c TC215B Intel Celeron J1900 1.99 – 2.42 GHz (Quad-Core) 4 GB DDR3L 4 GB SATA SSD Windows 7 Embedded 2017-10-20 2020-10-21
UD9-W740c 40c TC215B Intel Celeron J1900 1.99 – 2.42 GHz (Quad-Core) 4 GB DDR3L 4 GB SATA SSD Windows 7 Embedded + 2017-10-20 2020-10-21
UD9-W741c 41c (Touch) TC215B Intel Celeron J1900 1.99 – 2.42 GHz (Quad-Core) 4 GB DDR3L 4 GB SATA SSD Windows 7 Embedded 2017-10-20 2020-10-21
UD9-W741c 41c (Touch) TC215B Intel Celeron J1900 1.99 – 2.42 GHz (Quad-Core) 4 GB DDR3L 4 GB SATA SSD Windows 7 Embedded + 2017-10-20 2020-10-21
Last update: February 22, 2019
