Creating Certificates from an Existing Root Certificate (UMS 6.02 or Older)
Required Certificate Files
The following files are required:
- CA certificate
CA private key
If you need to export the CA signing root certificate and key from a Microsoft CA server, you can follow this document from Cisco: How do I export and convert a pfx CA root certificate and key from a Microsoft CA server
Importing Your Existing Private CA Files into the UMS
- In UMS Console go to UMS Administration > Global Configuration > Cloud Gateway Options.
- In the Certificates section, click to import the root certificate.

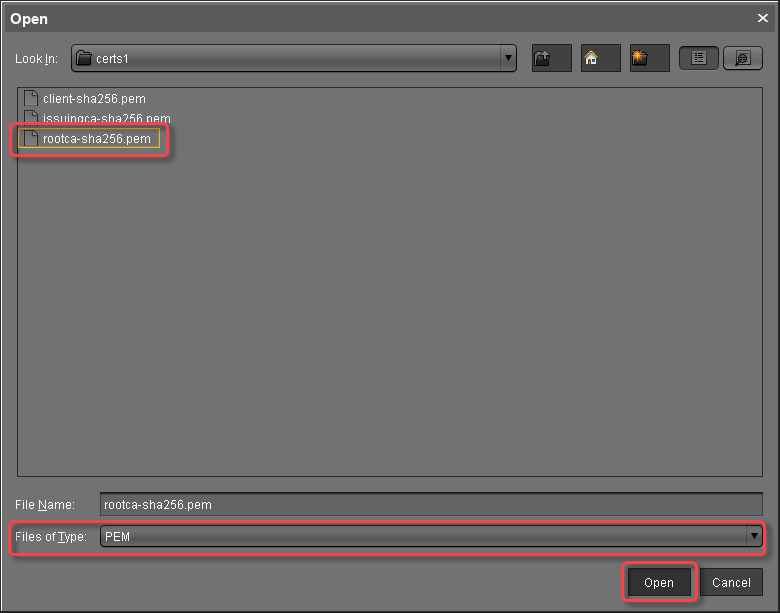

- Choose the CA's root certificate file (PEM format) and click Open.

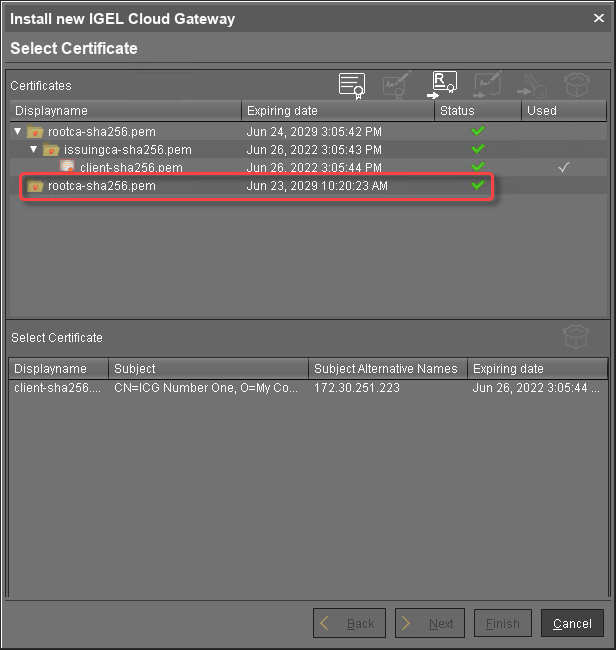

The CA's root certificate appears in the list.
Right-click the CA's root certificate and select Import decrypted private key.If the private key is protected with a passphrase, you need to decrypt it using the OpenSSL command line tool:
openssl rsa -in encrypted.key -out decrypted.key

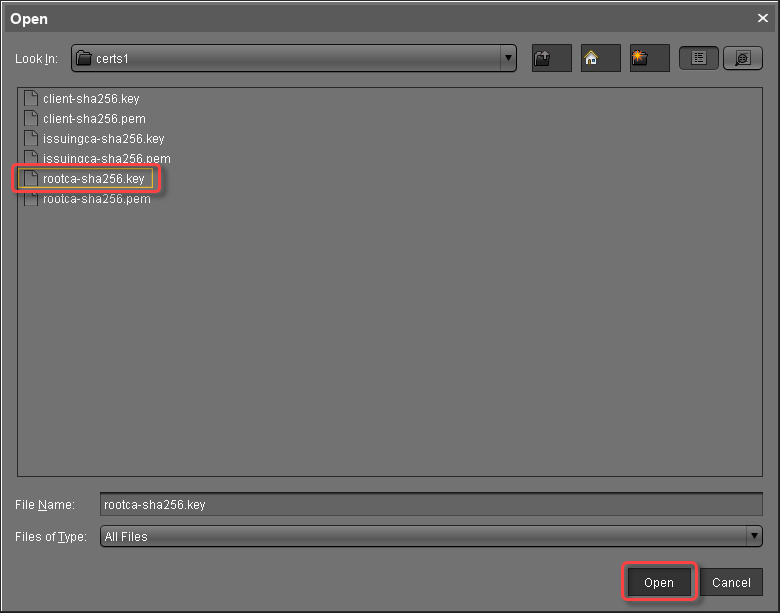

- Choose the decrypted private key file and click Open.

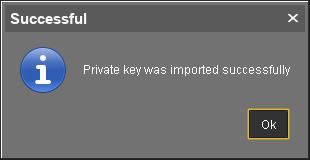

If everything went well, a success message is shown.
The CA is now ready to use.
Creating a Signed Certificate

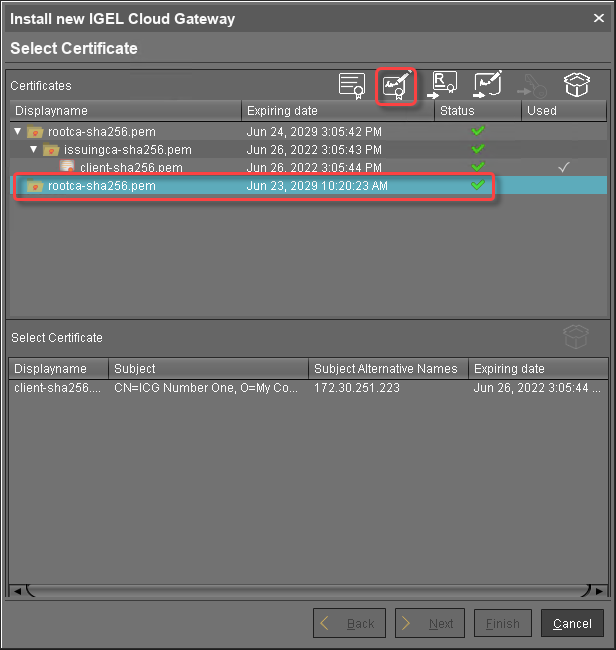

- Right-click the CA's root certificate and select Create signed certificate.

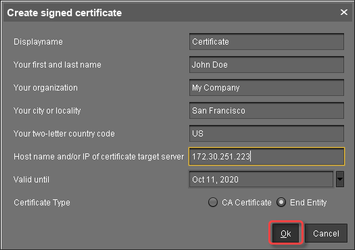

- Fill in the certificate fields:
All IP addresses and host names by which the ICG will be reachable from within the company network or from outside must be provided here.
- Display name: Name of the certificate
- Your first and last name: Name of the certificate holder
- Your organization: Organization or company name
- Your city or locality: Location
- Your two-letter country code:ISO 3166 country code, e.g.
- Hostname and/or IP address of certificate target server: Host name(s) or IP address(es) for which the certificate is valid. Multiple entries are allowed, separated by semicolons.
- Valid until: Local date on which this certifcate expires. (Default: one year from now)
- Certificate Type: Select "End Entity".
A key pair and a certificate are generated.
Generating keys may take substantial time on virtual machines (VMs), as these do not have a powerful (pseudo) random number source. On Linux VMs this can be improved by installing the haveged package.

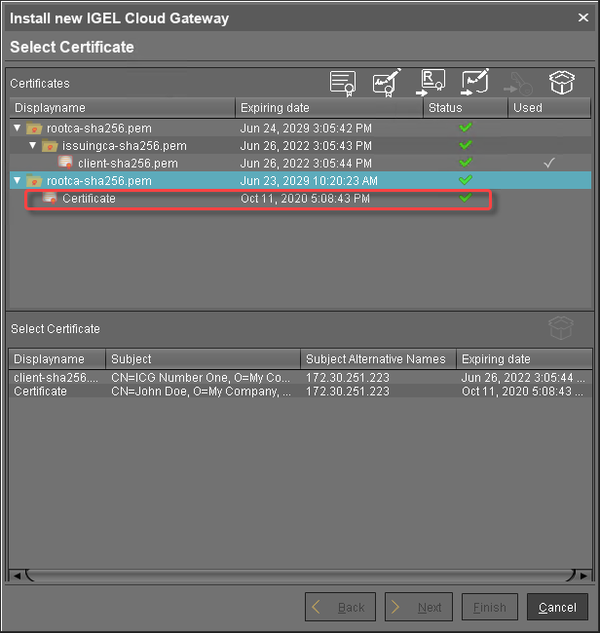

The signed certificate appears in the list.
- Continue with Installing the IGEL Cloud Gateway.
