Network Settings in the IGEL UMS Web App

In the Network area of the IGEL Universal Management Suite (UMS) Web App, you can find information on all connected UMS Servers, UMS Load Balancers, and IGEL Cloud Gateways. You can also find here the OBS Routing details for IGEL Onboarding Service and specify the nickname for your UMS.

Menu path: UMS Web App > Network

1	List of all available UMS Servers / UMS Load Balancers / IGEL Cloud Gateways (ICG)
2	In the header, you can find the following: Status of the selected UMS Server / UMS Load Balancer / IGEL Cloud Gateway, see "Status Displays" below. Status of UMS Server / ICG connections (connected, disconnected, unknown) Number of currently connected devices (only for the ICG)
3	Details for the selected UMS Server / UMS Load Balancer / IGEL Cloud Gateway You can find the Communication Token here. The communication token can be used during the onboarding process. For more information, see Onboarding IGEL OS 12 Devices .
4	Statistics for the device requests
5	Refresh network infromation. Open the Settings area. See details below.

Status Displays

UMS Server

The following icons show the status of the installed UMS Servers.

	The UMS Server is running.
	The UMS Server is not running.
	The status of the UMS Server is unknown (e.g. when a new server is being propagated in the network) or has not yet been processed.
	The user is not authorized to view details for the UMS Server.
	The UMS Server is being updated.

UMS Load Balancer

The following icons show the status of the installed UMS Load Balancers.

	The Load Balancer is running.
	The Load Balancer is not running.
	The status of the UMS Load Balancer is unknown (e.g. when a new load balancer is being propagated in the network) or has not yet been processed.
	The user is not authorized to view details for the Load Balancer.
	The Load Balancer is being updated.

IGEL Cloud Gateway

The following icons show the status of the installed IGEL Cloud Gateways.

	The IGEL Cloud Gateway is running.
	The IGEL Cloud Gateway is not running.
	The status of the IGEL Cloud Gateway is unknown or has not yet been processed.
	The user is not authorized to view details for the IGEL Cloud Gateway.
	The IGEL Cloud Gateway is being updated.

Settings

Click to open the Settings area.

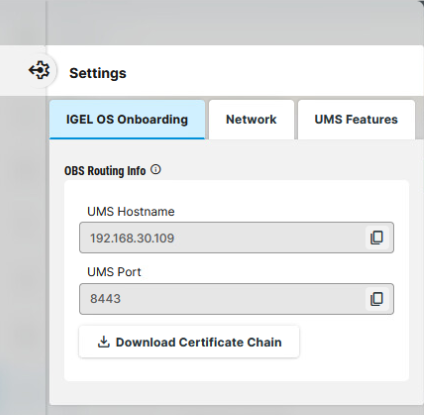

IGEL OS Onboarding

Here, you can find OBS Routing information which is required if you use IGEL Onboarding Service. For details, see Initial Configuration of the IGEL Onboarding Service (OBS) .

To copy the data, click .

UMS Hostname

Hostname (Fully Qualified Domain Name) or IP address of the UMS Server.

If configured, the Server-Netzwerkeinstellungen in der IGEL UMS or the Server - Informationen zu Ihrem UMS Server anzeigen is used here (in the order given).

UMS Port

Port under which the UMS can be reached. The default port of the UMS web server is 8443. For details on the ports used by the UMS, see IGEL UMS Kommunikationsports .

If configured, the Server-Netzwerkeinstellungen in der IGEL UMS or the Server - Informationen zu Ihrem UMS Server anzeigen is used here (in the order given).

Download Certificate Chain

Downloads the UMS root certificate with .crt file extension.

Network

Nickname

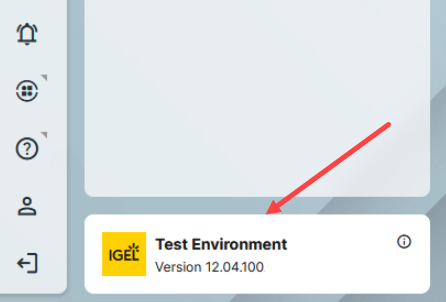

A name specified here is displayed in the info box of the UMS Web App as well as in the browser tab and helps to distinguish one UMS instance from another.

To change the value, permission for the node Server Network Settings under UMS Console > UMS Administration > Global Configuration is required.

For how to set rights, see Zugriffsrechte im Administrationsbereich .

Allowed Redirect URIs

If you use a URL to login to your UMS, which is not detected automatically, you can add additional redirect URIs here.

For details, see UMS Login Requirements .

UMS Features

Permission for the node UMS Features under UMS Console > UMS Administration > Global Configuration is required.

For how to set rights, see Zugriffsrechte im Administrationsbereich .

Enable Template Profiles

Template profiles are enabled. For information on template profiles, see Templateprofile in der IGEL UMS .

Enable Priority Profiles

Priority profiles are enabled. For information on priority profiles, see Priority Profile in der IGEL UMS .

Enable Recycle Bin

The recycle bin is enabled. Deleted items are moved to the recycle bin first. For information on the recycle bin, see So verwenden Sie den Papierkorb in der IGEL UMS Web App.

If the recycle bin is disabled, the items are deleted permanently straight away. The Recycle Bin button is not visible.

The recycle bin is enabled or disabled globally for all UMS users.

Enable Insight Service

Enables IGEL Insight Service if you accept the privacy policy in the consent dialog by clicking OK. When you activate the IGEL Insight Service, IGEL collects specific analytical and usage data listed under Data collected by Insight Service. For details, see IGEL Insight Service .

Disables IGEL Insight Service.
