Menu path: Structure Tree > Views > Context Menu > New View

You can create a view using a standard procedure or graphical / text expert mode. For information on how you can configure the display of view results, see Views and Searches.

 If you want to change the created view, e.g. in order to add further criteria, select Edit view in the context menu. View editing is possible only in expert mode.

Standard Procedure

To create a new view, proceed as follows:

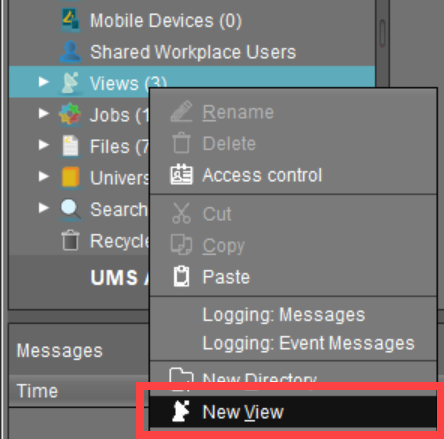

  1. Right-click on Views in the structure tree.
  2. Select New View in the context menu or System > New > New View in the menu.
    The Create new view window will open.
  3. Give a Name and a Description.
  4. Click on Next.

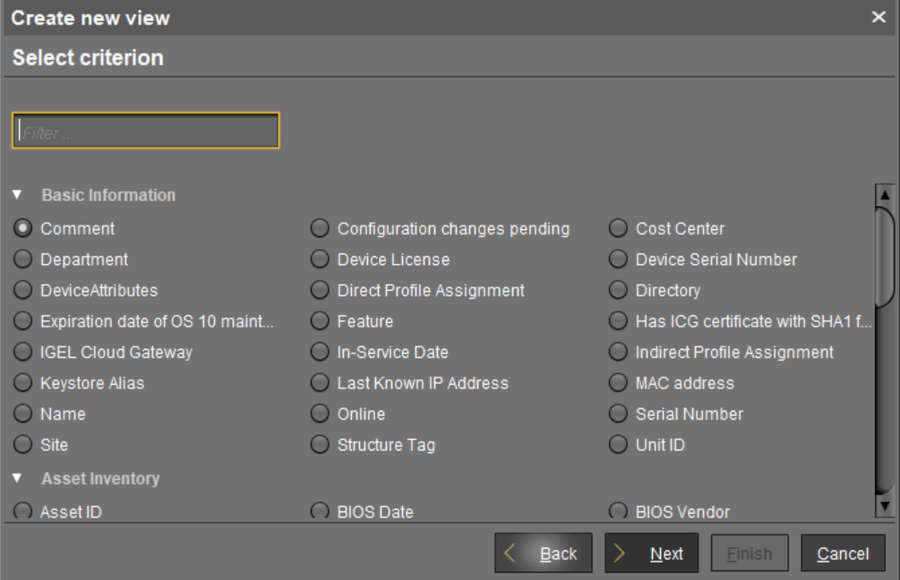

  5. In the Select criterion window, select a parameter.
    You will find a list of all available search parameters under Possible Search Parameters.

  6. Click on Next.
  7. In the entry field in the Text search window, enter a text with which the parameter value is to be compared and select one or more search options.
    Depending on the parameter, the following search options are available:
    • Consider case

      The case of the parameter value must match the case of the text entered.

      The case of the parameter value can differ from the case of the text entered.

    • Compare whole text

      The parameter value must match the text entered completely.

      The parameter value does not need to match the text entered completely; it is sufficient if the text entered is contained in the parameter value.

    • Use regular expression

      The Consider case and Compare whole text options are grayed out. You can enter a regular expression of your own in the entry field. Example: RDD.* selects all devices whose serial number contains the string RDD.
      General information on regular expressions can be found e.g. under Class Pattern in the Oracle documentation.
      You cannot enter a regular expression in the entry field. However, you can use regular expressions when subsequently editing the view.


    • Not like

      The parameter value must differ from the pattern entered.

      The parameter value must match the pattern entered.

    • Exact: The parameter value must match the value entered.
    • Above: The parameter value must be above the value entered.
    • Below: The parameter value must be below the value entered.
    • Not like: The parameter value must differ from the value entered.
  8. Click on Next.
  9. In the Finish view creation window, click on one of the following options:
    • Create view: The view will be generated when you click on Finish.
    • Narrow search criterion (AND): You can specify a further selection criterion that must likewise apply. This selection criterion and the previously defined selection criterion are linked with a logical AND.
    • Create additional search criterion (OR): You can specify a further selection criterion that must apply as an alternative. This selection criterion and the previously defined selection criterion are linked with a logical OR.
  10. Depending on the option selected, click on Finish or Next. You can add as many criteria with AND/OR links as you want.

For an example, see Example: Creating a View.

Expert Mode

You can also create a new view using expert mode – either in graphical form or in text mode. It is possible to switch back and forth between graphical and text mode as long as the entered data in either mode is complete and valid.

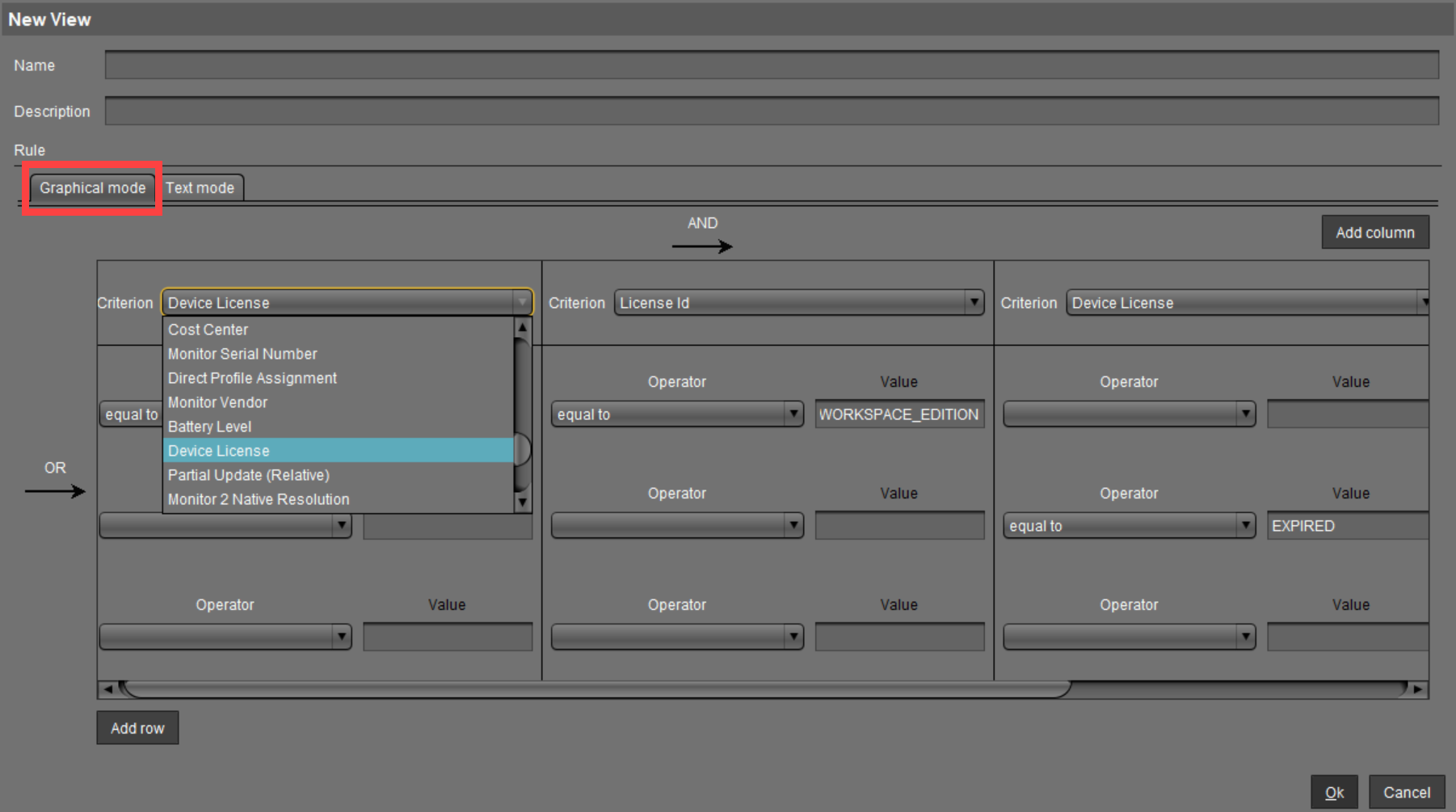

Graphical Mode

  1. Right-click on Views in the structure tree.
  2. Select New View in the context menu or System > New > New View in the menu.
    The Create new view window will open.
  3. Click Expert mode.
    The New View window will open.
  4. Select Graphical mode.
  5. Give a Name and a Description.
  6. Under Criterion, select a parameter.
    You will find a list of all available search parameters under Possible Search Parameters.
  7. Select an Operator and define the Value. The list of operators can vary depending on the selected criterion.
    • equal to: The parameter value must match the value entered.
    • like: The parameter value must match the pattern entered.
    • not like: The parameter value must differ from the pattern/value entered.
    • less than: The parameter value must be less than the value entered.
    • greater than: The parameter value must be greater than the value entered.
  8. Click Add column / Add row to define further criteria / values.
    • Criteria / values in the same row are linked with a logical AND.
    • Criteria / values in different rows are linked with a logical OR.
  9. Click OK.

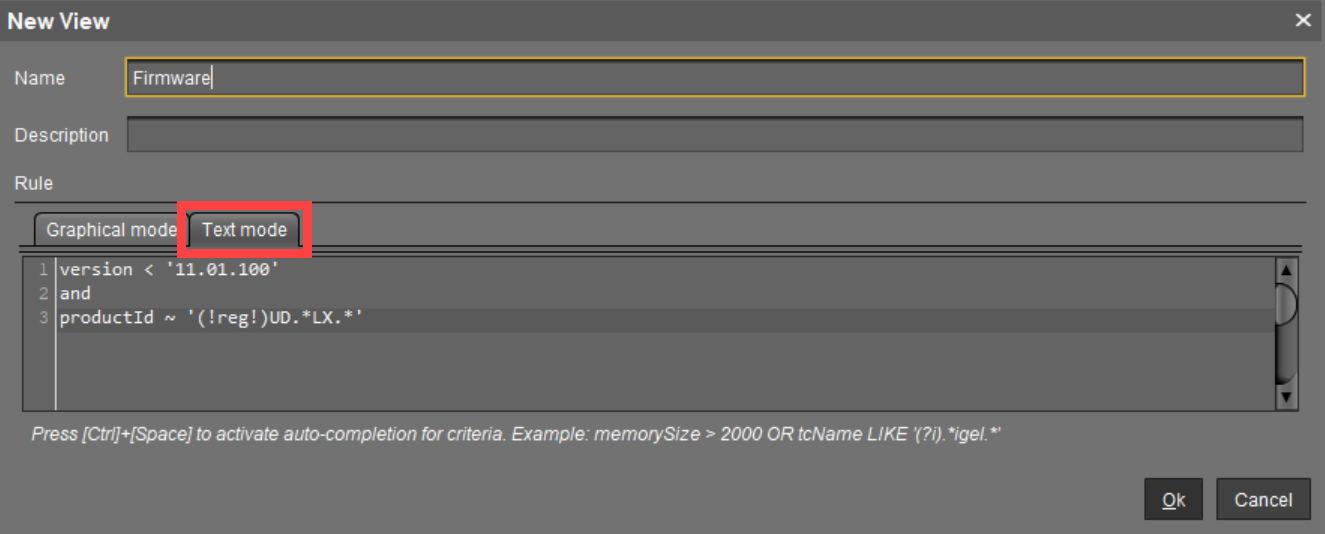

Text Mode

  1. Right-click on Views in the structure tree.
  2. Select New View in the context menu or System > New > New View in the menu.
    The Create new view window will open.
  3. Click Expert mode.
    The New View window will open.
  4. Select Text mode.
  5. Give a Name and a Description.
  6. Under Rule, enter your query. Text mode allows entering a rule in an SQL-like query, consisting of one or more expressions, see Expression Parts below.
    You can press [Enter] to type from the new line. Line breaks can be entered at any time for convenience, but they are not preserved as the query is generated dynamically whenever a switch to text mode occurs.
  7. Click OK.

Expression Parts

  • An expression consists of three parts: CRITERION OPERATOR VALUE
    Example: memorySize > 1000
    This query will find all devices with a system memory greater than 1000 MB.
  • Multiple expressions can be combined with logical operators AND and OR. Note that AND takes precedence over OR and binds its surrounding expressions stronger.
    Example: memorySize > 1000 and department = '(?i)sales' or tcName ~ 'Dev.*'
    The search result of this query will contain all devices that fulfill the memory and department constraints simultaneously and additionally all devices whose name starts with 'Dev'.

Criterion

  • Possible criteria and their internal identifiers can be found under Text Mode of Views: Matrix of Possible Criteria and Operators.
  • [Ctrl] + [Space] for auto-completion:

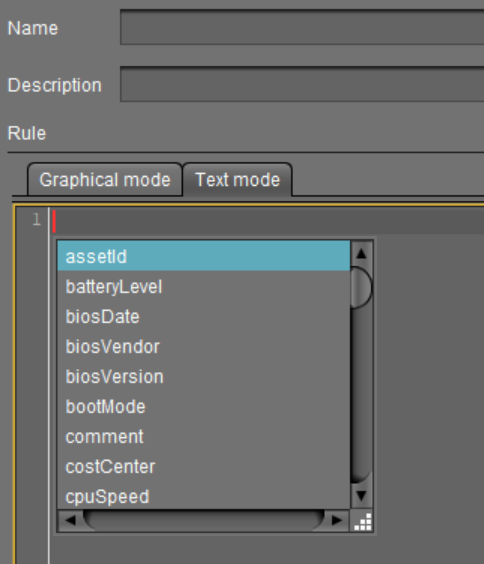

    • At any time when a criterion is expected, you can press [Ctrl] + [Space] to activate auto-completion.
      A popup window listing all possible criteria opens. Device attributes are also listed here via their internal identifier if such an identifier has been specified under UMS Administration > Global Configuration > Device Attributes > UMS internal identifier, see Device Attributes.

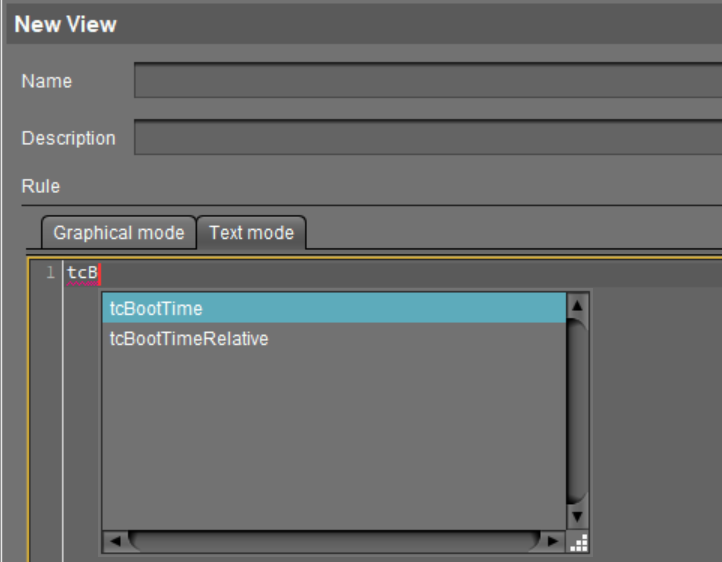

    • Auto-completion also works when a criterion is entered only partially. It will then show only criteria matching the already entered fragment. If only one criterion matches the fragment, it will be completed without showing the popup window.

Operator

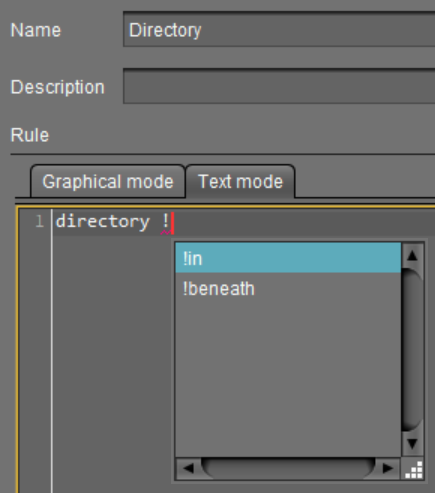

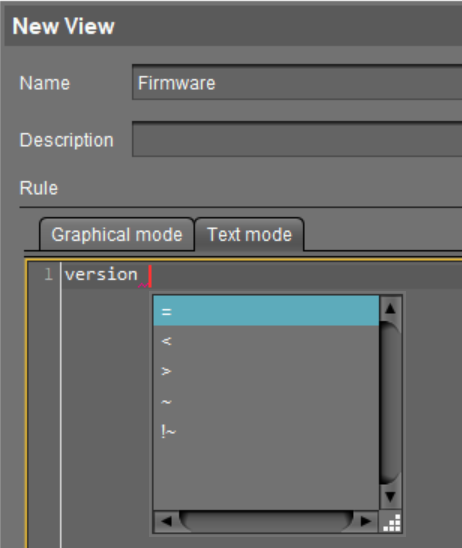

  • For the list of operators possible for the criterion entered, see Text Mode of Views: Matrix of Possible Criteria and Operators.

  • The available operators are listed in the following table. The "Operator" column shows the operator names as they are provided in the selection lists of graphical mode.
    Multiple variations of operators are recognized for convenience or readability. Therefore, "LIKE" can also be written, for example, as "~".

    OperatorPattern(s)
    equal to=


    less than<


    greater than>


    like~likeLikeLIKE
    not like!~!like!Like!LIKE
    ininInIN
    not in!in!In!IN
    beneathbeneathBeneathBENEATH
    not beneath!beneath!Beneath!BENEATH
    is true= true


    is false= false


Value

  • Text- and date-based values have to be enclosed in double (") or single (') quotation marks.
  • Numeric values (integer, decimal values) do not require quotation marks.

Examples

Device's Name contains "igel", where (?i) is a flag expression for case-insensitive matching:

tcName LIKE '(?i).*igel.*'
JAVA

Consider case:

tcName LIKE '.*IGEL.*'
JAVA

Compare whole text:

tcName LIKE '(?i)td-IGEL01'
JAVA

Devices with a specific Monitor Size:

monitorSize = 24.1
JAVA

Devices with a specific Last Boot Time (Absolute):

tcBootTime > '2021-05-01' and tcBootTime < '2021-06-25'
JAVA

Devices with device attribute values "KB" or "KM", where deviceAttributeSubdepartments is an identifier specified under Device Attributes > UMS internal identifier, see Device Attributes:

deviceAttributeSubdepartments ~ 'KB' or deviceAttributeSubdepartments ~ 'KM'
JAVA

Regular Expressions

Regular expressions are introduced by (!reg!). For general information on regular expressions, see e.g. Class Pattern in the Oracle documentation. Note that not all regular expression constructs described there are supported by the UMS, or their behavior in the UMS may be different.

  • Any character zero or more times: .*
    All devices whose product ID contains "UD-LX", e.g. UD3-LX51

    productId LIKE '(!reg!)UD.*LX.*'
    JAVA

  • Any character one or more times: .+
    All devices whose name contains any character one or more times after "igel", e.g. igel1, igel203

    tcName ~ '(!reg!)igel.+'
    JAVA

  • Any character one time or not at all: .?
    All devices whose name contains any character one time or not at all after "igel", e.g.  igel and igel1

    tcName like '(!reg!)igel.?'
    JAVA

  • A digit [0-9]: \d
    All devices whose name contains a digit after "igel", after which any character follows one or more times, e.g. igel20, igel00E0C520986A, igel3DE

    tcName ~ '(!reg!)igel\d.+'
    JAVA

  • Range: [a-zA-Z]
    All devices whose name contains a hexadecimal number (e.g. for MAC addresses) one or more times after "igel", e.g. igel00E0C520986A

    tcName ~ '(!reg!)igel[0-9A-F]+'
    JAVA
