Reconfiguring IGEL Managed Hypervisor

Image Creation Machine

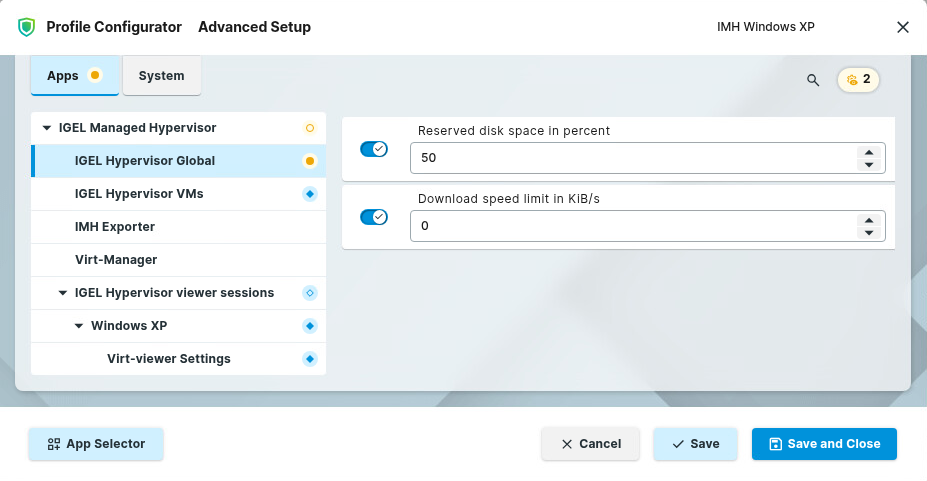

Configuring Reserved Disk Space and Download Speed

→ Open the Apps tab, go to IGEL Managed Hypervisor > IGEL Hypervisor Global and edit the settings according to your needs.

Reserved disk space in percent

The proportion of the image creation machine’s storage that is used for the virtual machine. Default: 50

Download speed limit in KiB/s

Speed limit for downloading the image file from the WebDAV server.

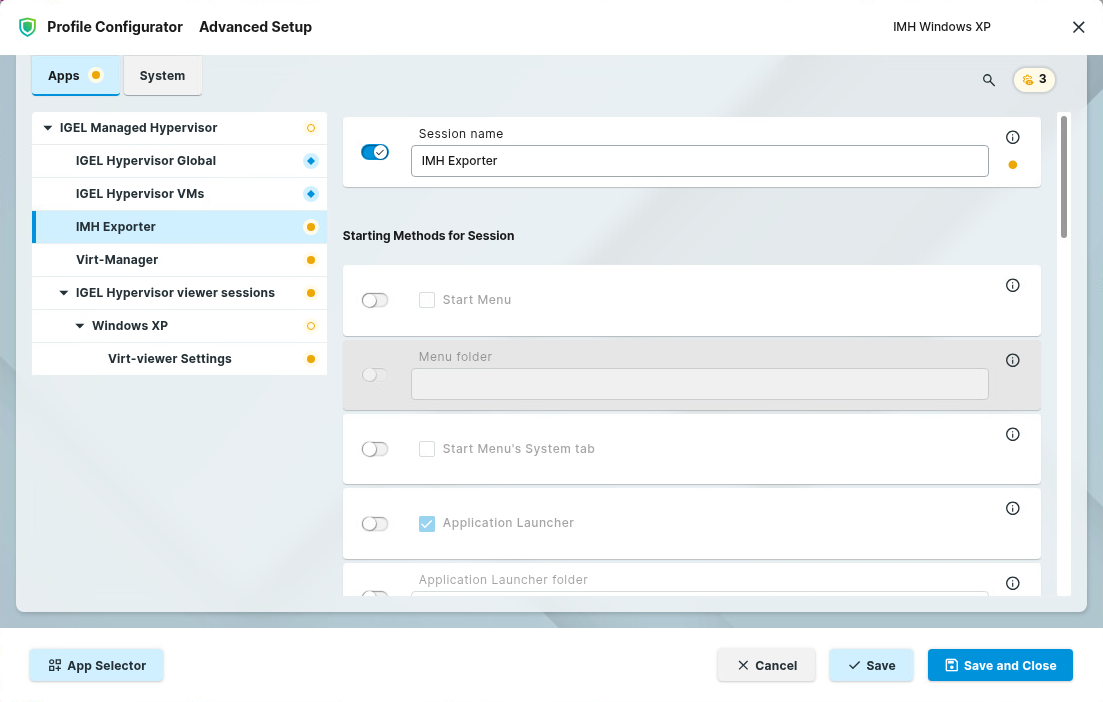

Configuring the Start Options for the IMH Exporter

→ Open the Apps tab, go to IGEL Managed Hypervisor > IMS Exporter, and edit the settings according to your needs.

For detailed information on the start options, see Starting Methods for Apps.

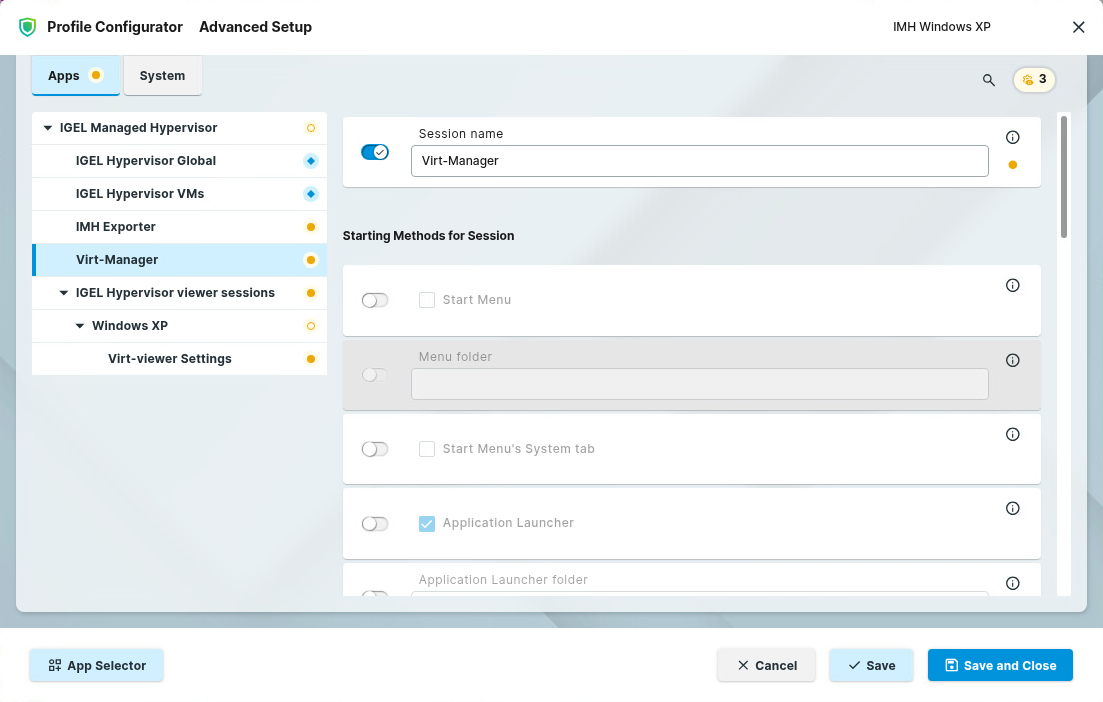

Configuring the Start Options for the Virt-Manager

→ Open the Apps tab, go to IGEL Managed Hypervisor > Virt-Manager, and edit the settings according to your needs.

For detailed information on the start options, see Starting Methods for Apps.

Target Machines

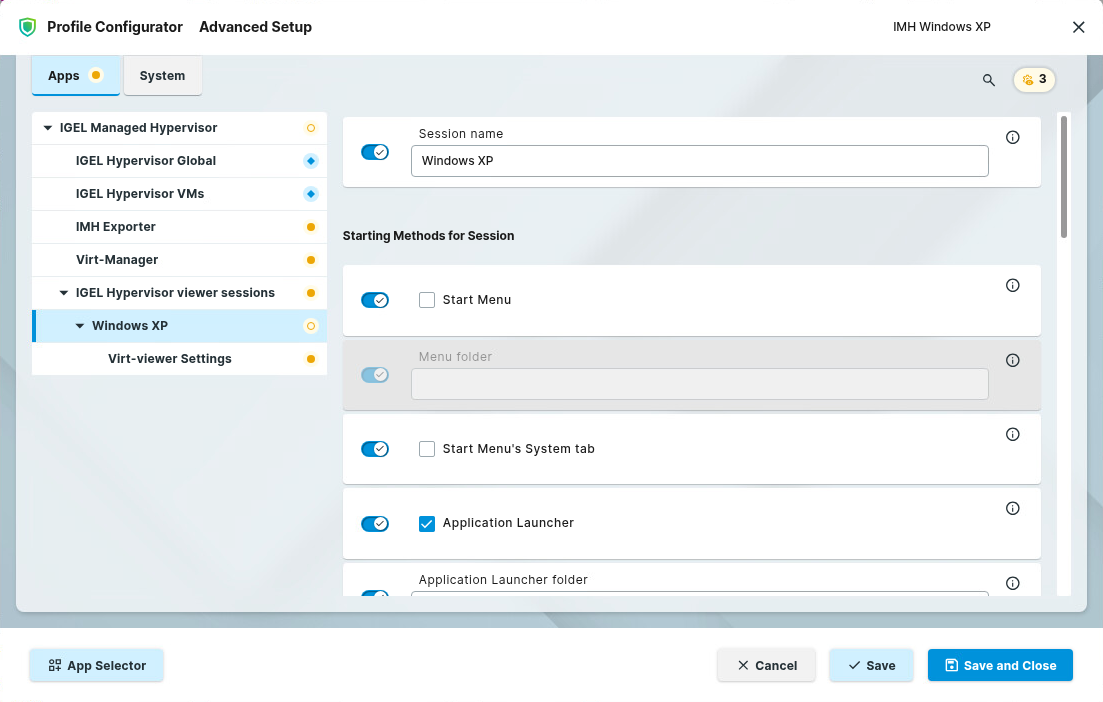

Configuring the Start Options for the Virtual Machine

→ Open the Apps tab, go to IGEL Managed Hypervisor > IGEL Hypervisor viewer sessions > [session name], and edit the settings according to your needs.

For detailed information on the start options, see Starting Methods for Apps.

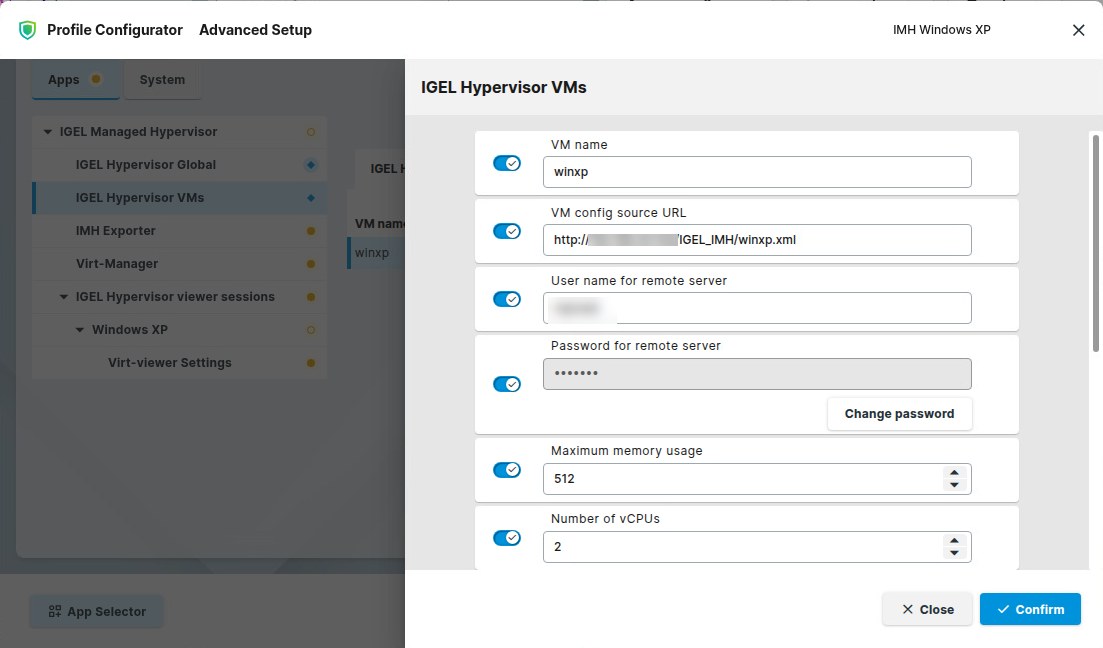

Configuring the Virtual Machine

→ Open the Apps tab, go to IGEL Managed Hypervisor > IGEL Hypervisor viewer sessions > [session name] > Virt-viewer Settings, and edit the settings according to your needs.

VM name

The name of the virtual machine you have created

VM config source URL

The URL of the XML file you have exported

User name for remote server

The username for read access to the WebDAV repository

Password for remote server

The password associated with the username

Maximum memory usage

The maximum memory (RAM) used by the virtual machine

Number of vCPUs

The number of virtual CPUs

Autostart

• The virtual machine will be started automatically.
• The virtual machine will only start if the user starts the session. (Default)

Disk Image is immutable

• Changes in the virtual machine will be gone when it is restarted.
• Changes in the virtual machine will persist after a restart. (Default)

MAC address for virtual interface

You can specify the MAC address of your virtual machine’s network interface. This is useful if the software in your virtual machine is licensed for a specific MAC address.

Type of network for this VM

The following networks are supported on the target machines:

• isolated: The network interface is deactivated in the virtual machine.

• NAT: Network Address Translation (NAT) is used; the host machine translates the internal IP address of the virtual machine to its own IP address.

• bridged: The network device specified in Network device used for this VM. Will be ignored for some pre-configured bridge devices is used.

• hostonly: The preconfigured hostonly bridge is used.

• macvtap: The network device specified in Network device used for this VM. Will be ignored for some pre-configured bridge devices is used with the macvtap driver.

Network device used for this VM. Will be ignored for some pre-configured bridge devices

1. Create a network interface by setting the Registry key network.interfaces.ethernet.device<NUMBER>.bridge (System tab > Registry > network > interfaces > ethernet > device<NUMBER>.bridge to own). Example: If the setting has been made for device0, the network interface will be breth0.

2. Enter the resulting name in this field.
