Useful IGEL UMS Features for Managing Reverse Proxy Connected Devices

This article describes IGEL Universal Management Suite (UMS) features that support the management of devices connected through a reverse proxy.

Default Directory Rules for Devices Connected via Reverse Proxy

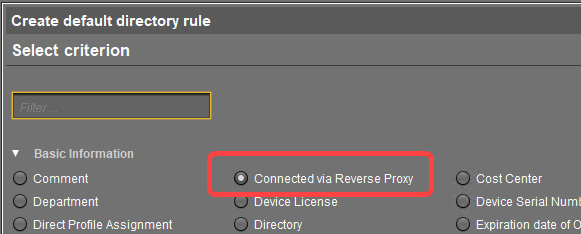

You can create a default directory rule to sort devices connected through the reverse proxy into a dedicated folder.

You can do this by using the Connected via Reverse Proxy criterion. You can use the dedicated folder to assign objects (files, profiles, etc.) to the devices included in the folder. This way, devices receive special settings when they are connected through a reverse proxy.


For more on default directory rules, see How to Create a Default Directory Rule.

Search for Devices Connected via Reverse Proxy in the UMS Web App

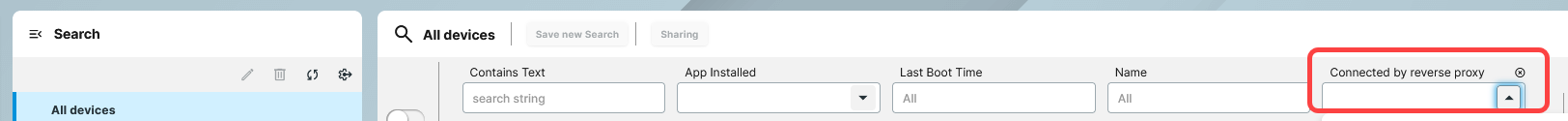

In the UMS Web App Search area, you can use the Connected by reverse proxy search criterion to list devices that are connected through a reverse proxy.


If you save the list as advanced search, you can use it in jobs and administrative tasks, see How to Use Advanced Search in the IGEL UMS Web App.

Device Information

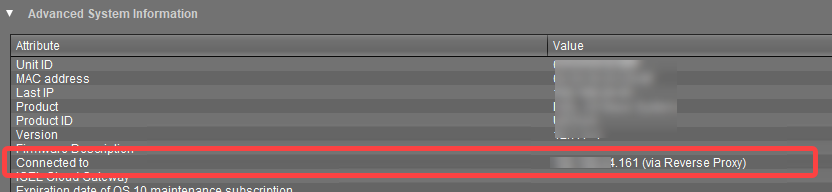

You can quickly check whether a specific IGEL OS 12 device is connected via a reverse proxy by navigating to the device in the UMS Console or in the UMS Web App:

  • IGEL UMS Web App: Devices > [name of the device] > System Information > Connected to.

  • IGEL UMS Console: Devices > [name of the device] > Advanced System Information > Connected to.


IMI

The responses to the following IGEL Management Interface (IMI) requests contain a field connectedViaReverseProxy that indicates whether the device is currently routed through a reverse proxy connector:
