Wi-Fi Networks Configuration in IGEL OS 12

This article shows how to configure wireless network connections in IGEL OS. All the wireless network connections configured for the device are shown in the list, including connections configured through the UMS or the Wi-Fi tray app. For more information on the tray app, see Tray Applications in IGEL OS 12 .

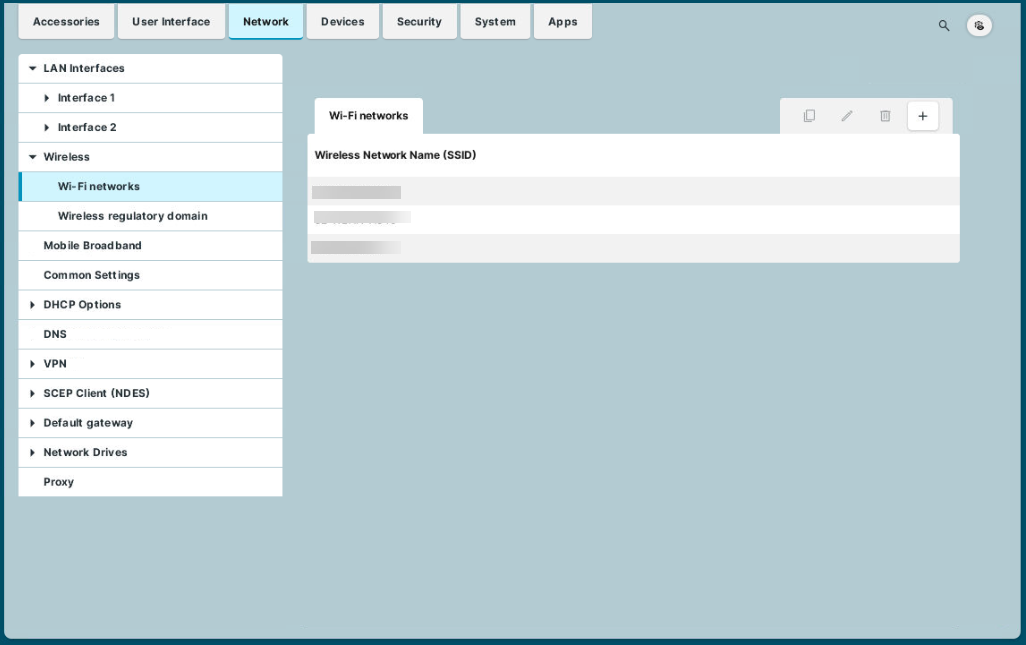

Menu path: Network > Wireless > Wi-Fi Network

To edit the Wi-Fi networks list, proceed as follows:

Click to create a new entry.
Click to remove the selected entry.
Click to edit the selected entry.
Click to copy the selected entry.

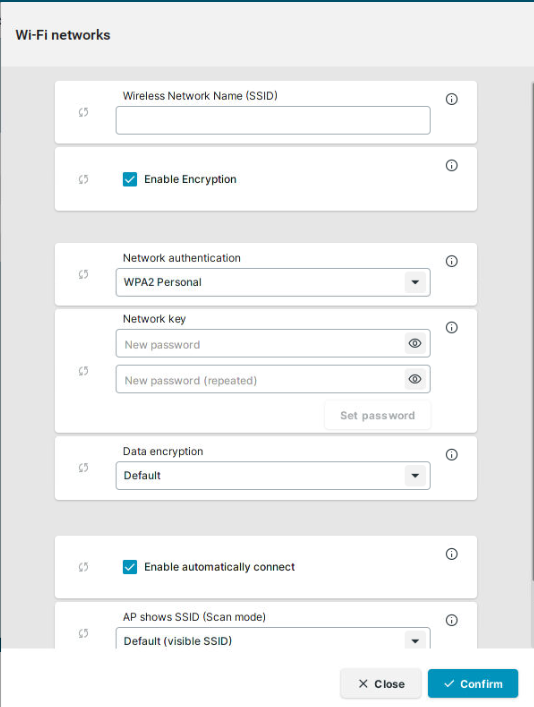

Clicking brings up the Add dialogue, where you can define the settings of the wireless network.

Wi-Fi Networks Settings

Wireless network name (SSID)

Name of the wireless network (SSID)

Enable encryption

→ Encrypted connection is used. (Default)

Network authentication

You can configure the following network authentication methods.

WPA Personal: Wi-Fi Protected Access Pre-Shared Key (WPA / IEEE 802.11i/D3.0)
WPA2 Personal: Wi-Fi Protected Access Pre-Shared Key (WPA2 / IEEE 802.11i/RSN) (Default)
WPA3 Personal: Wi-Fi Protected Access SAE (Simultaneous Authentication of Equals)
WPA Enterprise: Wi-Fi Protected Access with 802.1X authentication (WPA / IEEE 802.11i/D3.0)
WPA2 Enterprise: Wi-Fi Protected Access with 802.1X authentication (WPA2/IEEE 802.11i/RSN)

Depending on the selection, you can configure the corresponding parameters below.

For WPA/WPA2/WPA3 Personal encryption, see WPA/WPA2/WPA3 Personal.
For WPA/WPA2 Enterprise encryption, see WPA/WPA2 Enterprise.

WPA/WPA2/WPA3 Personal Encryption

Network key

WPA network key/passphrase as set at the access point. This is either an ASCII character string with a length of 8...63 or exactly 64 hexadecimal digits.

Data encryption

Default: The default value depends on which network authentication method is selected. For WPA, TKIP is the default. For WPA2, AES (CCMP) is the default. (Default)
TKIP: Temporal Key Integrity Protocol (IEEE 802.11i/D7.0)
AES (CCMP): AES in Counter mode with CBC-MAC (RFC 3610, IEEE 802.11i/D7.0)
AES (CCMP) + TKIP: One of two encryption methods is selected by the access point.
Automatic: The access point can choose the encryption method freely – nothing is stipulated.

AP scan mode

Scan mode for access points.

Default (Default)
Broadcast: Alternative for access points which allow the SSID broadcast
No broadcast: Alternative for access points which refuse the SSID broadcast (hidden access points)

Enable automatically connect

→ Automatic connection to the access point is enabled. (Default)

WPA/WPA2 Enterprise Encryption

Data encryption

Default: The default value depends on which network authentication method is selected - TKIP for WPA, AES (CCMP) for WPA2. (Default)
TKIP: Temporal Key Integrity Protocol (IEEE 802.11i/D7.0)
AES (CCMP): AES in Counter mode with CBC-MAC (RFC 3610, IEEE 802.11i/D7.0)
AES (CCMP) + TKIP: One of two encryption methods is selected by the access point.
Automatic: The access point can choose the encryption method freely – nothing is stipulated.

AP scan mode

Scan mode for access points

Default (Default)
Broadcast: Alternative for access points which allow the SSID broadcast
No broadcast: Alternative for access points which refuse the SSID broadcast (hidden access points)

EAP type

PEAP: Protected Extensible Authentication Protocol
TLS: Transport Layer Security with client certificate
TTLS: Tunneled Transport Layer Security
FAST: Flexible Authentication via Secure Tunneling

Anonymous identity

This identity is sent by authentication instead of the actual Identity. This prevents the disclosure of the actual identity of the user. The anonymous identity is relevant for any of the above-mentioned EAP Types, except for TLS.

Auth method

Method for authentication that is available for the selected EAP type.
Possible options:

MSCHAPv2: Microsoft Challenge Handshake Authentication Protocol (Default)
TLS: Transport Layer Security with client certificate
GTC: Generic Token Card
MD5: MD5-Challenge
PAP: Password Authentication Protocol

Validate server certificate

☑ The endpoint device validates the authenticity of the authentication server against the certificate file. This certificate file is stored under the path defined by CA root certificate.

☐ The authenticity of the authentication server is not validated.

CA root certificate

Path and file name of the file that contains the certificates with which the authentication server authenticates itself.

Identity

User name that is stored at the authentication server

Password

Password relevant to the user name

The following settings are relevant if you have selected TLS as EAP type:

Manage certificates with SCEP (NDES)

☑ Client certificates will automatically be managed with SCEP. For more information on SCEP configuration, see SCEP Client (NDES) in IGEL OS 12 .

☐ Client certificates will not be managed with SCEP. (Default)

Client certificate

Path to the file with the certificate for client authentication in the PEM (base64) or DER format.

If a private key in the PKCS#12 (PFX) format is used, leave this field empty.

Private key

Path to the file with the private key for the client certificate. The file can be in the PEM (base64), DER, or PKCS#12 (PFX) format. The Private key password may be required for access.

Identity

User name for network access

Private key password

Password for the Private key for the client certificate

The following setting is relevant if you have selected FAST as EAP type:

Automatic PAC provisioning

Specifies how the PAC (Protected Access Credential) is delivered to the client.

Possible options:

Disabled: PAC files have to be transferred to the device manually, e.g. via UMS file transfer.
Unauthenticated: An anonymous tunnel will be used for PAC provisioning.
Authenticated: An authenticated tunnel will be used for PAC provisioning.
Unrestricted: Both authenticated and unauthenticated PAC provisioning is allowed. PAC files are automatically created after the first successful authentication. (Default)

PAC files are stored in /wfs/eap_fast_pacs/.

PAC file names are automatically derived from the Identity, but are coded. In the case of the manual PAC provisioning, you can determine the PAC file names with the following script: /bin/gen_pac_filename.sh
