Configuration of OpenConnect VPN

In this article you can find information on the configuration options for the OpenConnect VPN app.

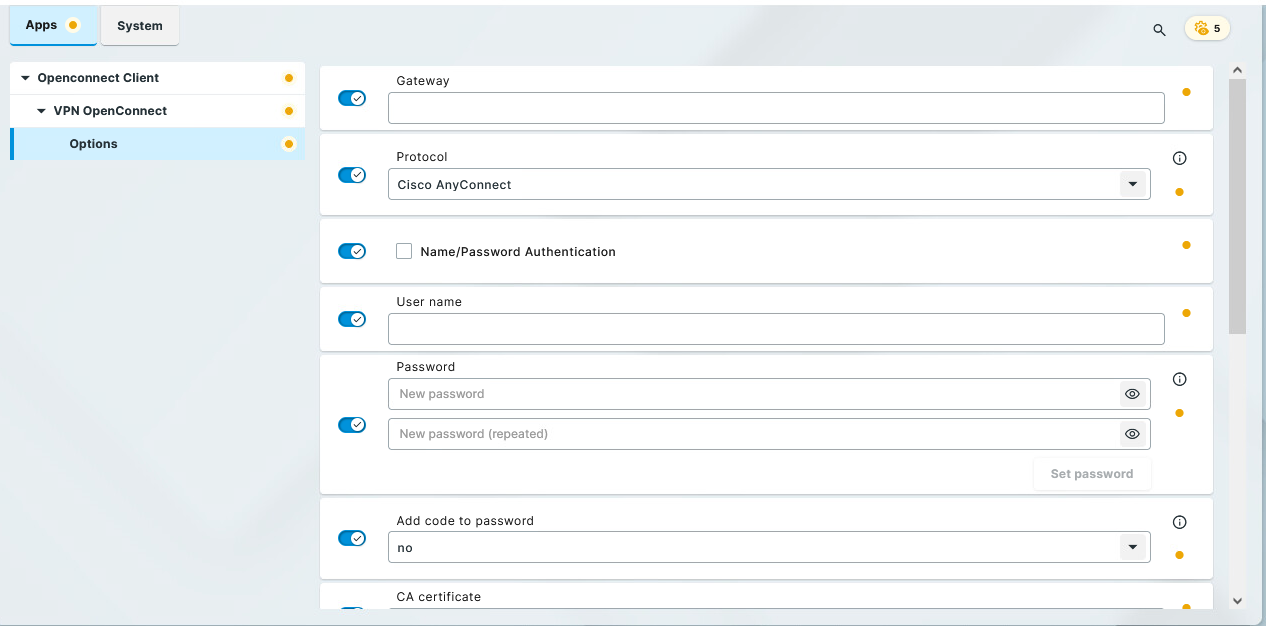

Menu path: Apps > OpenConnect Client> OpenConnect Session > Options

Gateway

IP address, hostname or Fully Qualified Domain Name (FQDN) of the VPN gateway

Protocol

Defines the protocol used in the VPN connection

Possible options:

• Cisco AnyConnect (Default)

• Juniper Network

• Junos Pulse

• PAN GlobalProtect

• F5 BIG-IP

• Fortinet FortiGate

• Array Networks

Name/Password Authentication

☑ User name and password are used for authentication.

☐ User name and password are not used for authentication. (Default)

User name

User name used for authentication

Password

Password used for authentication

Add code to password

An extra field is shown in the authentication dialog to provide the code for multi-factor authentication.

Possible options:

• no: No code is required for authentication

• before: The code has to be entered in the password field before the password

• after: The code has to be entered in the password field after the password

• separate field: A separate field is shown for entering the code. The Registry key app.openconnect.settings.openconnect%.vpnopts.search_str_code has to be set to the corresponding value.

CA Certificate

Path to the CA certificate

User Certificate

Path to the user certificate

Private Key

Path to the private key

Private Key password

Password of the private key

Server Certificate

Path to the server certificate

Extended parameters

These parameters are added to the parameter list. Ensure that you use unique and accurate parameter naming. Use -- before each parameter.
