Medium Size UMS Installations (up to ~15k Devices); No High Availability
|
Installation Size |
#Devices |
#UMS Server Host |
UMS Server |
UMS Console Standalone |
#Load Balancer Standalone |
Load Balancer Standalone |
Database** |
ICG |
|---|---|---|---|---|---|---|---|---|
|
M |
< 15.000 |
1 server
|
8 GB RAM
4 CPUs 25 GB free disk space |
Optional* 3 GB RAM 2 CPUs 1 GB HDD |
|
|
External database 10 GB |
1 ICG instance per 2,500 devices Server generally:
Only ICG service:
|
* UMS Console can be installed on UMS Server host.
** Follow the recommendation of the external database system on RAM and CPU.
For High Availability, see Small and Medium Environments: UMS M/S (HA).

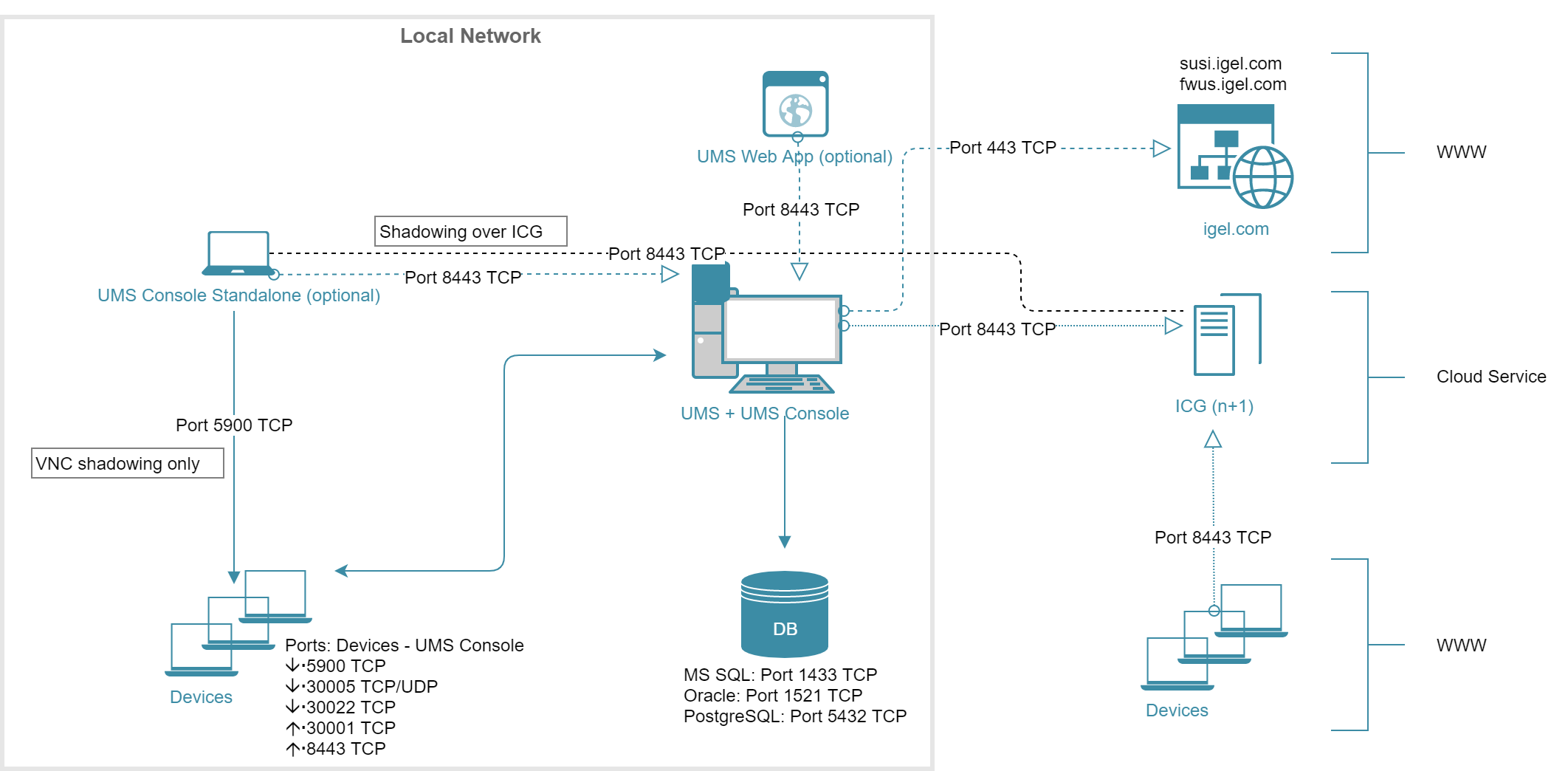

Architecture: Medium Environment + ICG
